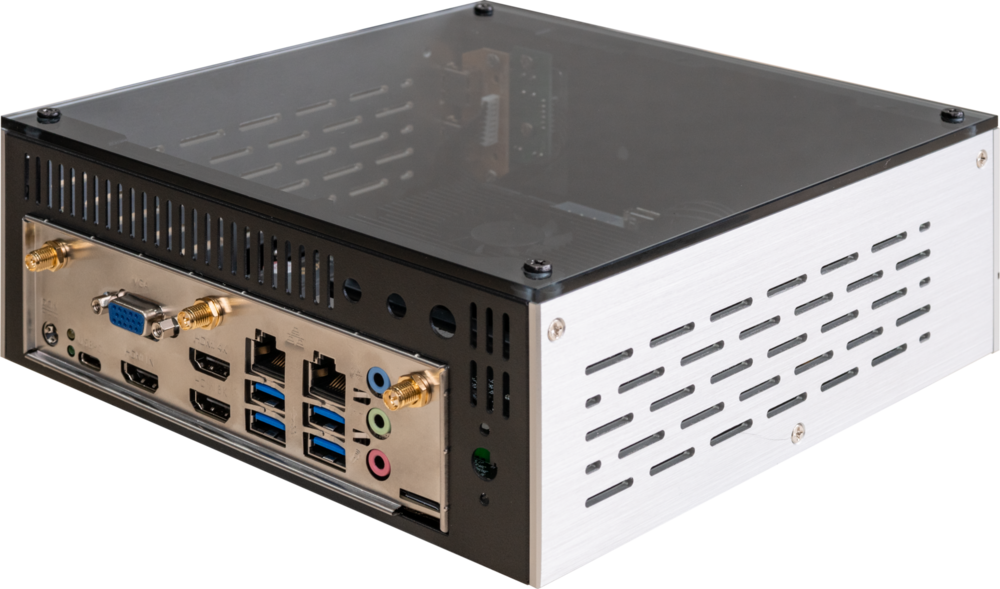

The EC-I3588J embedded host is based on the ITX-3588J high-performance open-source platform, equipped with industrial grade casing, dustproof and anti-interference, stable operation for long time, supporting 8K encoding and decoding, and rich interfaces for easy connection to various industrial devices. Based on Rockchip's all-new flagship AIoT chip -- RK3588, it adopts an 8nm LP process; Equipped with an eight core (Cortex-A76 x 4+Cortex-A55 x 4) 64 bit CPU, with a main frequency of up to 2.4 GHz. Integrated ARM Mali-G610 MP4 quad core GPU with built-in AI accelerator NPU, capable of providing 6 Tops of computing power, supporting mainstream deep learning frameworks.
Interface Description
**** provides rich interfaces, mainly including:
- 1 x HDMI2.1 (max output support 8K@60Hz)
- 1 x HDMI2.0
- 1 x HDMIIN2.0 (max input support 4K@60Hz)
- 1 x Display Port1.4 (max output support 8K@30Hz)
- 1 x USB3.0 OTG (Type-C)
- 1 x VGA
- 2 x MIPI-DSI
- 1 x MIPI-CSI
- 4 x SATA3.0
- 1 x M.2 (SATA3.0)
- 1 x PCIe3.0x4
- 1 x TF Card
- 1 x 4G LTE
- 1 x 5G mobile network
- 1 x SIM card slot
- 4 x USB3.0
- 4 x USB2.0
- 1 x WIFI (support wifi6)
- 1 x Bluetooth
- 1 x FAN (V1.1 version and subsequent versions are 4 PIN, controlled by PWM with ADC detection)
- 2 x RJ45 (support 1Gbps)
- 1 x Speaker
- 1 x Line-In
- 1 x RS485
- 1 x RS232
- 1 x CAN (added in V1.1 version; the H and L markings are reversed in V1.1, and the silkscreen is correct for V1.2 and subsequent versions)
- Multiple power input interfaces

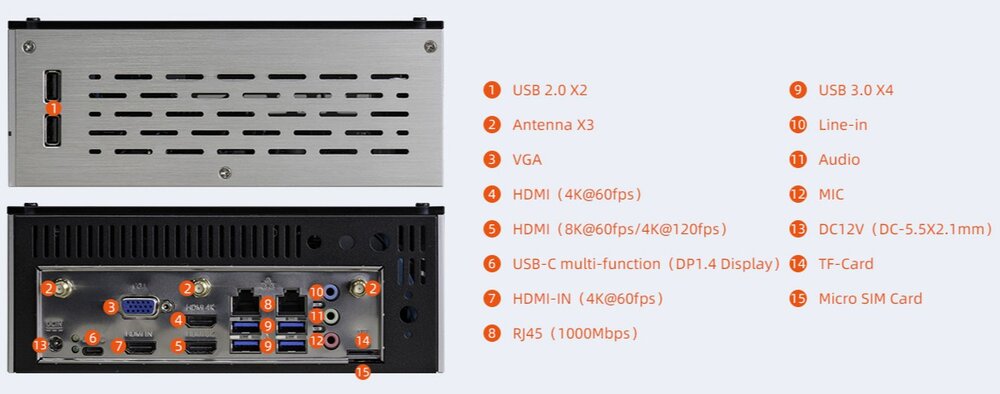

As shown in the figure below:
结构尺寸
Resources and Support
- [Wiki]: Contains Android & Ubuntu driver development and other materials (refer to the Core-3588J Wiki)
- [Technical Forum]: A communication platform with more than 100,000 enterprise customers and users
