EC-AGXOrin is equipped with the NVIDIA official original Jetson AGX Orin module, with 64GB of memory and up to 275 TOPS of computing power. It can run all modern AI models, including Transformer and ROS robot models. It can realize larger and more complex deep neural networks, such as using TENSORFLOW, OPENCV, JETPACK, KERASMXNET, PY-TORCH, etc., to achieve object recognition, object detection and tracking, speech recognition, and other visual development functions, meeting the needs of higher AI artificial intelligence application scenarios.

Interface Description

EC-AGXOrin provides rich interfaces, mainly including:

• 1 x DC 24V power interface (5.5mm × 2.1mm, supports 9V~36V wide voltage input)
• 1 x Type-C (Debug serial port)
• 1 x Type-C (OTG)
• 5 x RJ45 Gigabit Ethernet ports (4 of them support PSE power supply)
• 1 x 10Gbps Ethernet port
• 4 x USB3.0 (current limit 1A)
• 1 x HDMI2.0 (supports 4K@60Hz output)
• 8 x GMSL2
• 1 x TF Card
• 1 x SIM card slot
• 1 x 3.5mm Audio Jack (supports MIC recording, CTIA standard)
• 1 x 24Pin Phoenix terminal block (3.5mm pitch, including 2 x CAN, 1 x RS485, 1 x RS232, 1 x UART and IO)
• 2 x WiFi antenna, 3 x 5G antenna, 1 x 4G/5G antenna, 1 x GPS antenna
• Power key, Reset key, Recovery key
• Working LED, Power LED

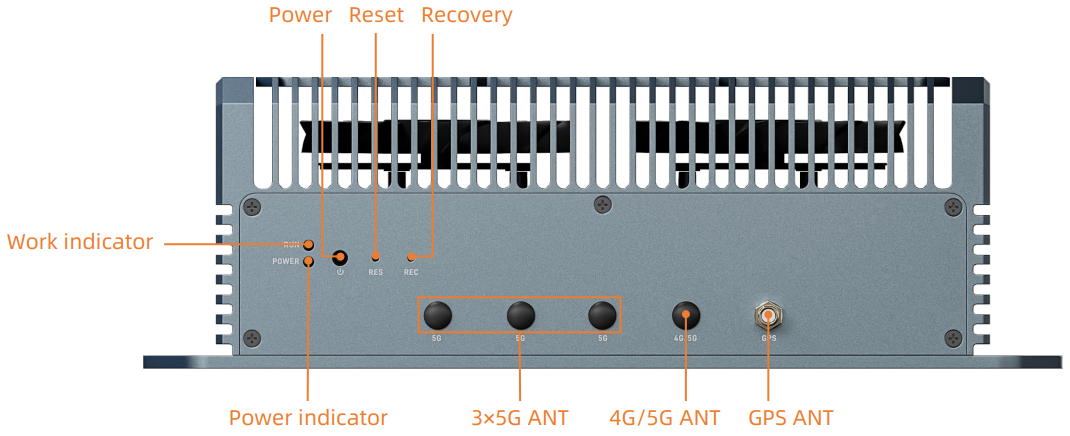

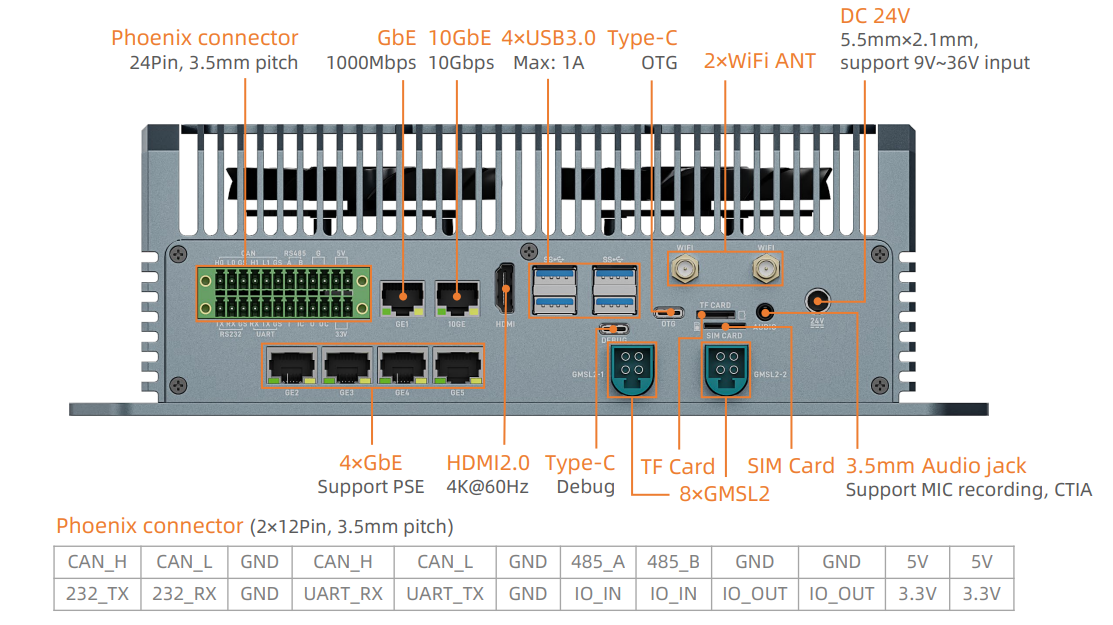

The positions and silkscreen definitions of the interfaces are shown in the figures above.

结构尺寸
