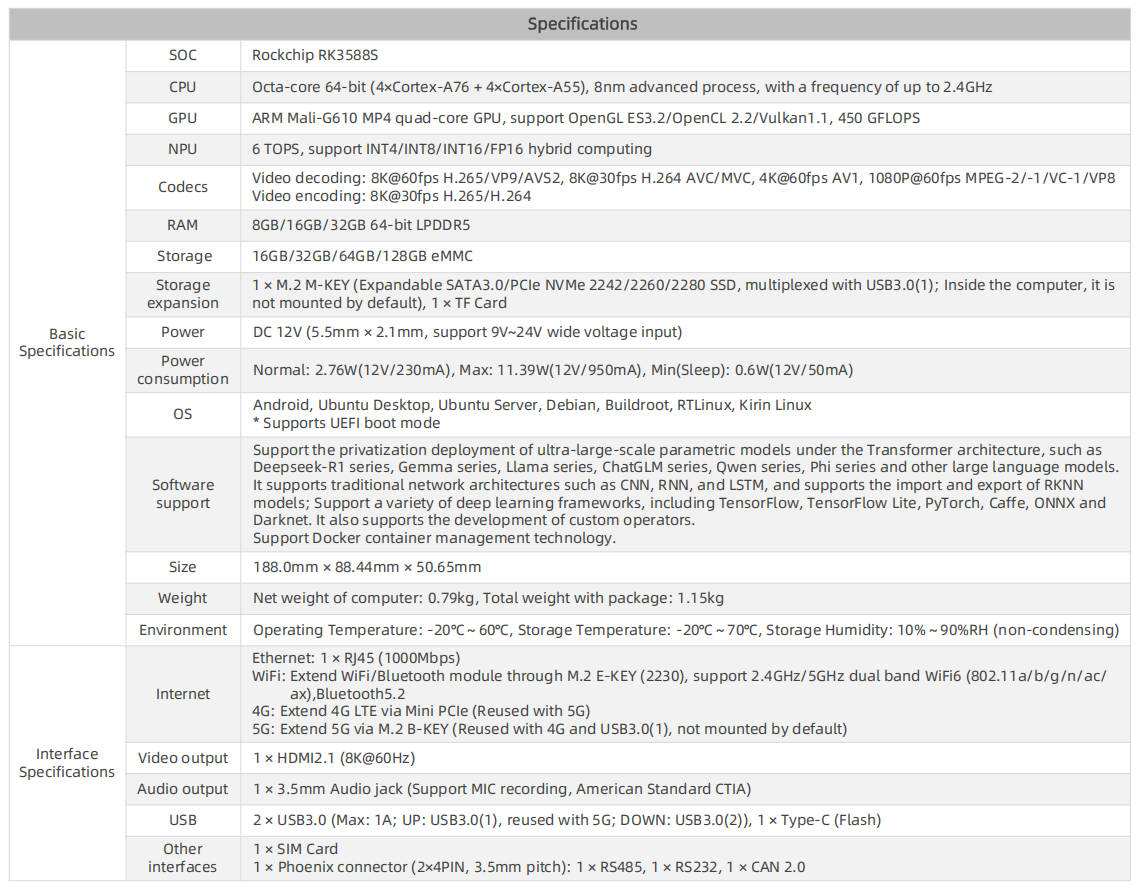

Specification | Purchase | Downloads

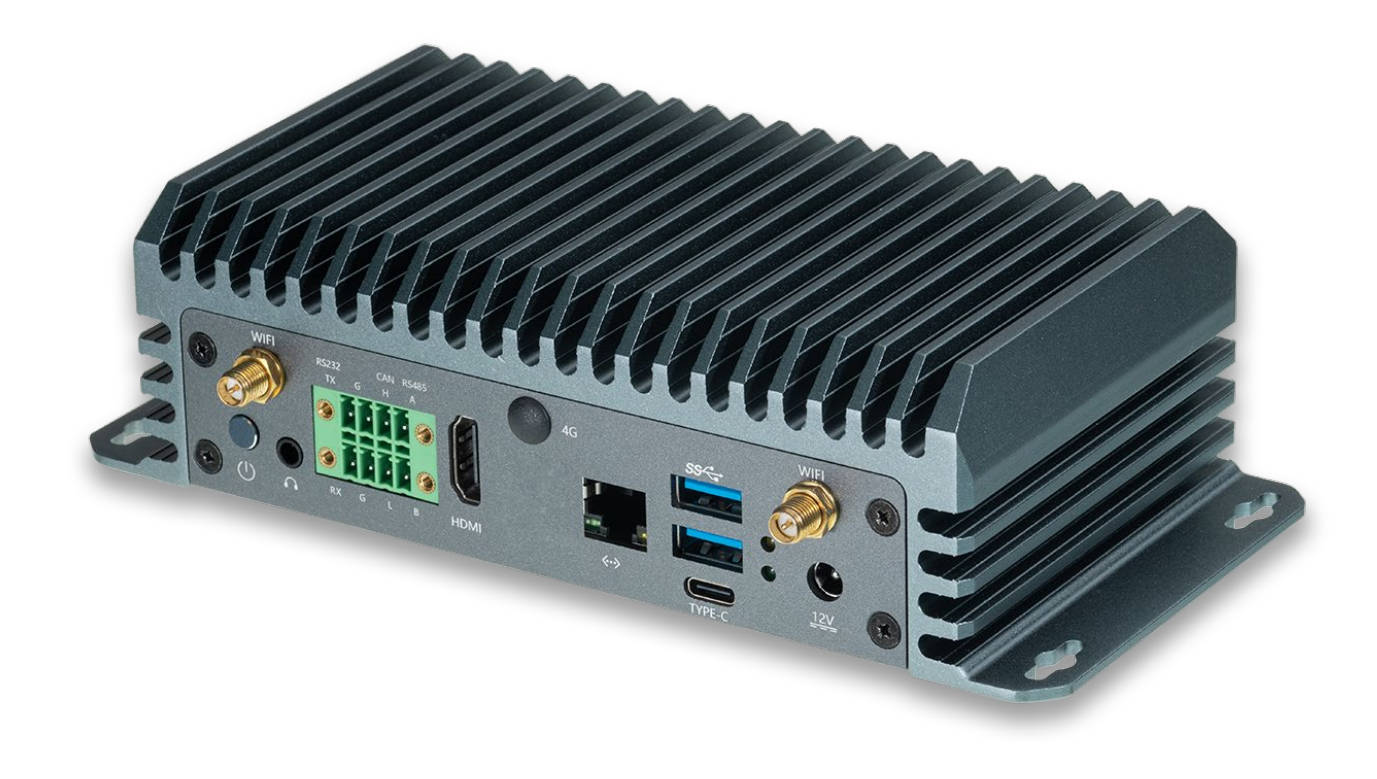

The EC-A3588SJD4-AI embedded host is based on the AIO-3588SJD4 AI high-performance open-source platform, adopting Rockchip's new AIoT chip RK3588S, 8nm LP process. It is equipped with an octa-core 64-bit CPU with a frequency of up to 2.4GHz. Integrated ARM Mali-G610 MP4 quad-core GPU can bring better performance to various AI application scenarios. Built-in powerful NPU, computing power up to 6TOPS. It supports INT4/INT8/INT16/FP16 hybrid computing, meet the needs of edge computing AI applications in most terminal devices. Supports 8K@60fps H.265/VP9, 8K@30fps H.264 video decoding, and 8K@30fps H.265/H.264 video encoding. Support the same compilation and interpretation. The device features an industrial-grade, all-metal enclosure with an aluminum alloy structure for efficient heat dissipation. Its fanless design contributes to silent operation, ensuring 24/7 uninterrupted and stable performance. Equipped with HDMI2.1, USB3.0, RS485, RS232, CAN, TF Card, SIM Card, Type-C and other expansion interfaces, convenient for connecting various external devices.
Interface Description
**** provides rich interfaces, mainly including:
- 1 x HDMI2.1 (up to 8K@60Hz output)
- 1 x USB Type-C (for download/debug)
- 2 x USB3.0
- 2 x MIPI-DPHY-CSI
- 1 x MIPI-D/CPHY-CSI
- 1 x TF Card
- 1 x 4G LTE
- 1 x SIM card slot
- 1 x USB2.0 (through pin header)
- 1 x WIFI (external module)
- 1 x Bluetooth (external module)
- 1 x FAN
- 1 x RJ45 (support 1Gbps Ethernet)
- 1 x Line-Out
- 1 x Line-In
- 1 x Headphone
- 1 x CAN
- 1 x RS232
- 1 x RS485
- 1 x SPI
- 2 x I2C

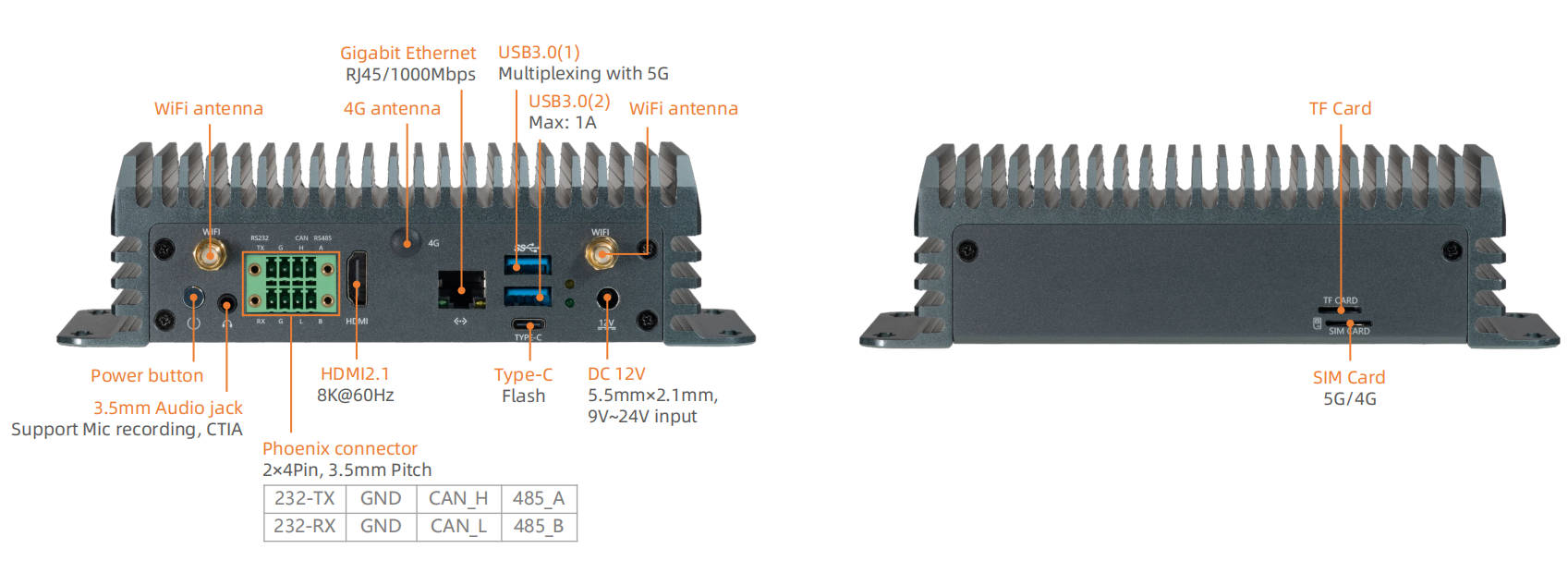

As shown in the figure below:

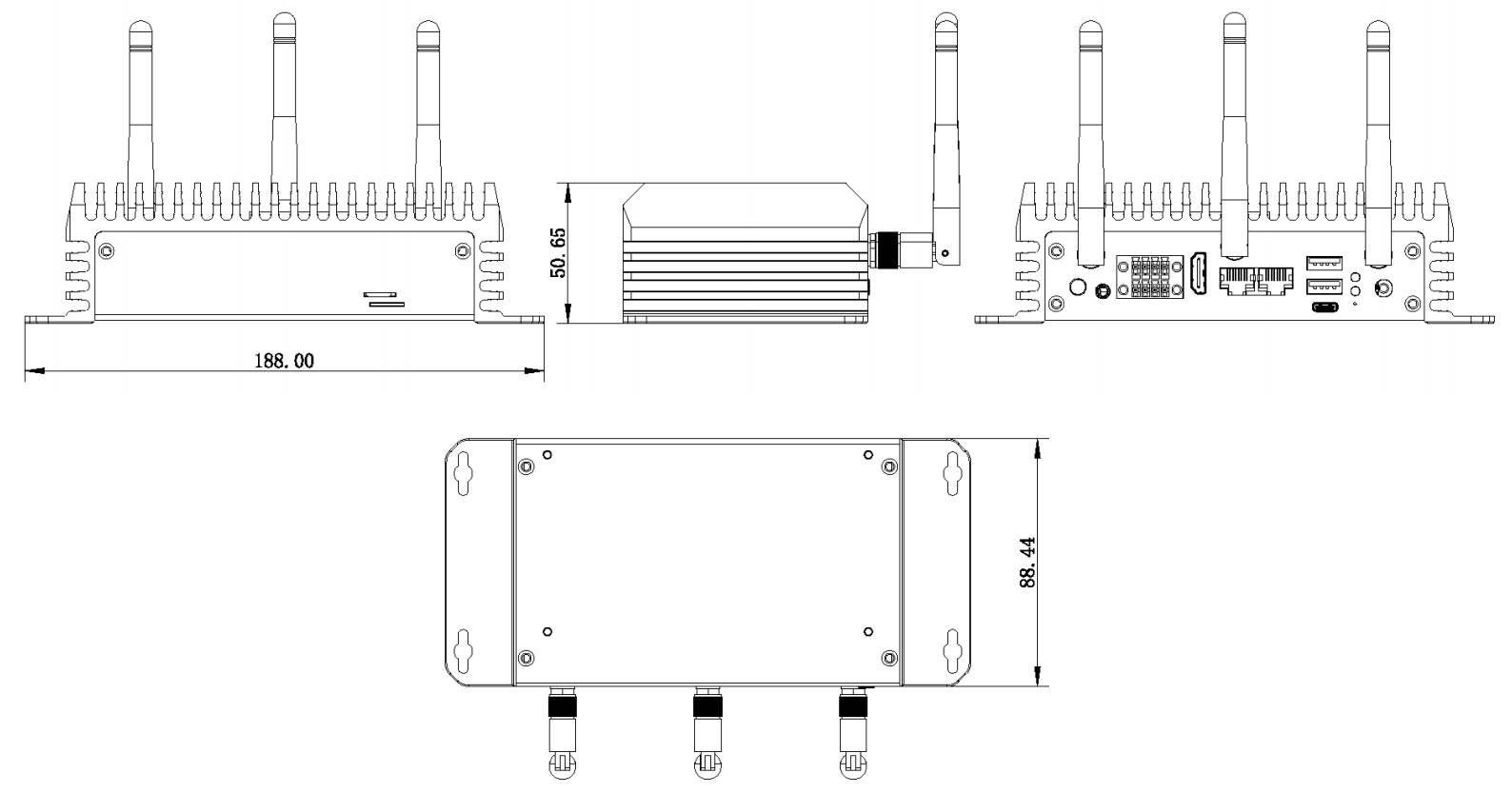

Structure and Dimensions
Resources and Support
- [Wiki]: Contains Android & Ubuntu driver development and other materials (refer to the Core-3588SJD4 AI Wiki)
- [Technical Forum]: A communication platform with more than 100,000 enterprise customers and users
