Introduction

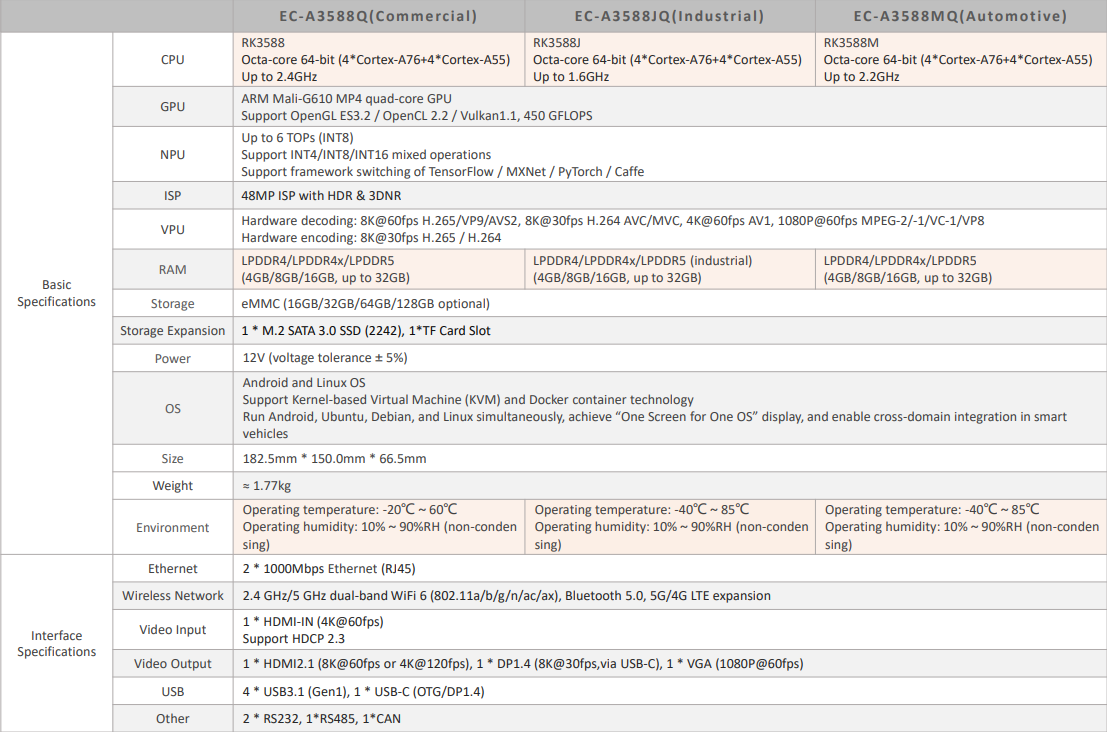

Specification | Purchase | Downloads

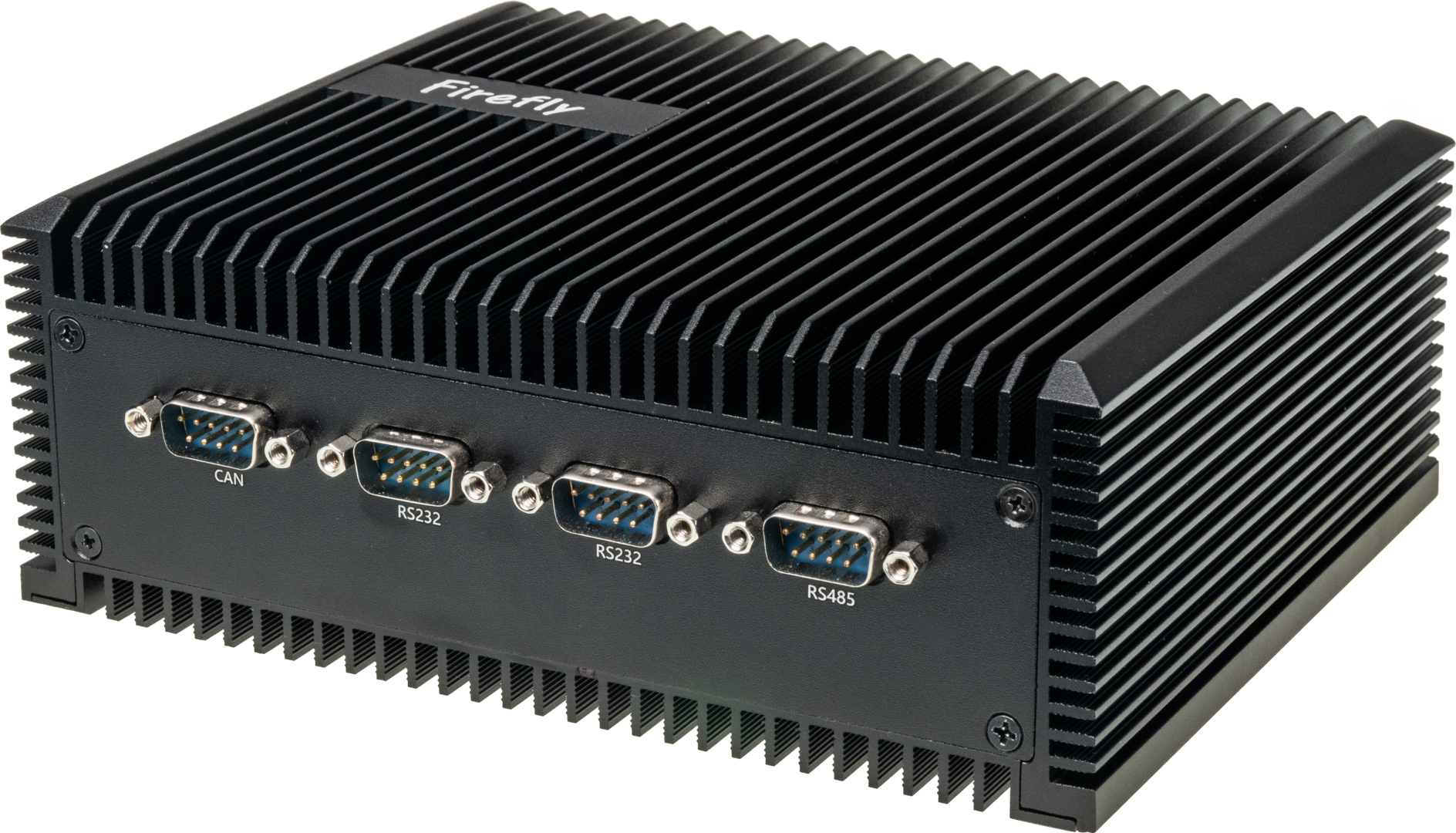

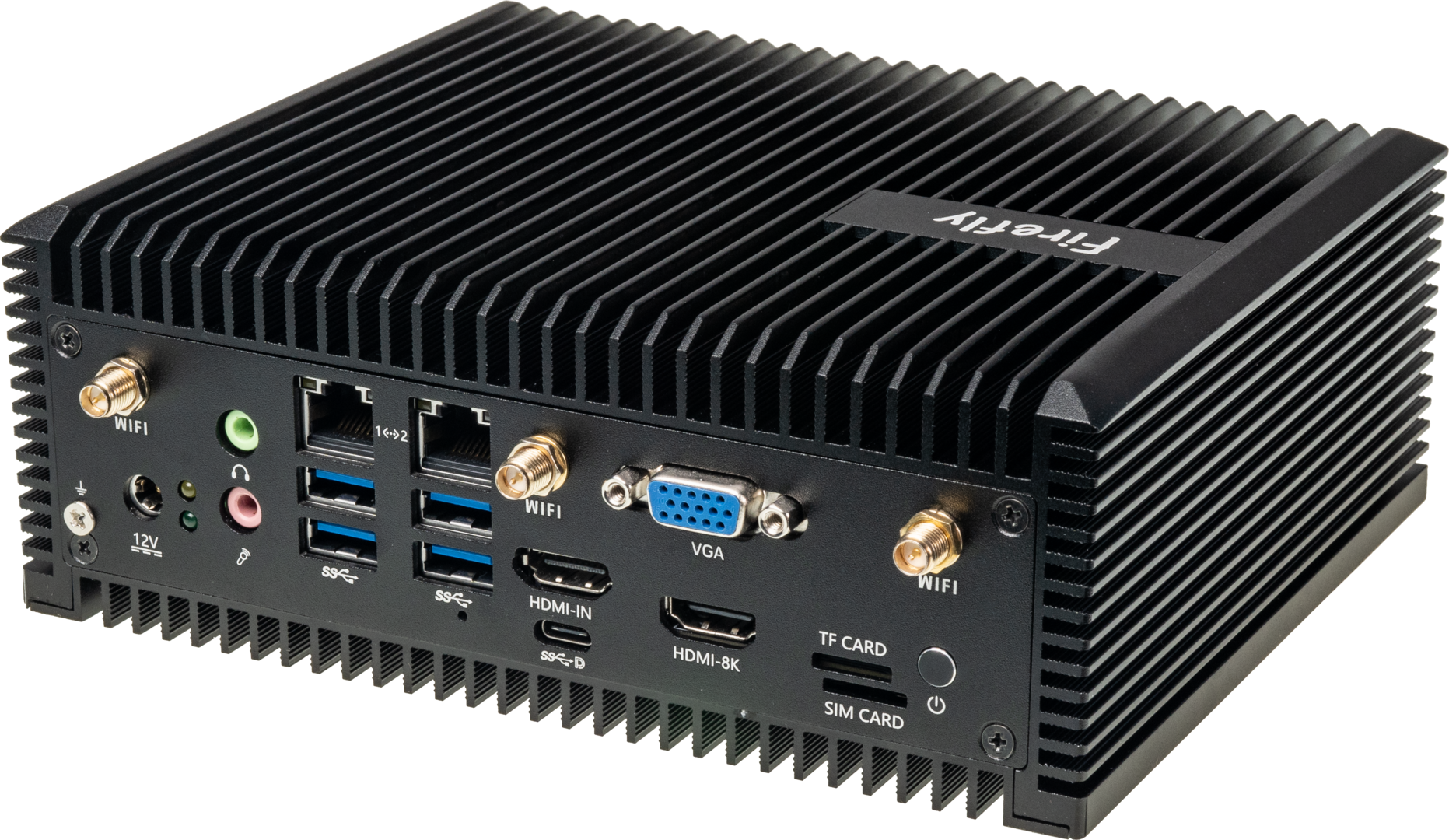

The EC-A3588Q adopts the Rockchip RK3588 octa-core 64-bit processor and can be configured with up to 32GB of super-large memory; it supports 8K video encoding and decoding; it has rich interfaces, supporting Gigabit Ethernet, WiFi6, 5G/4G expansion, a variety of video input and output, and M.2 SATA/PCIe solid state drives; it supports multiple operating systems; it can be used in ARM PC, edge computing, industrial control, IoT gateway, cloud terminal, smart vehicle and other fields.

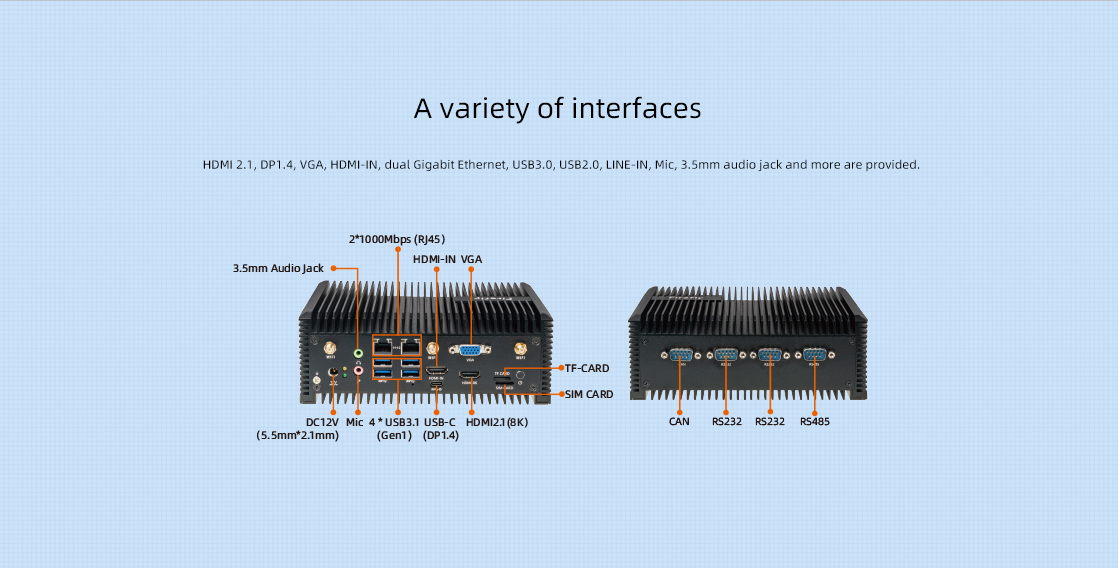

Interface Description

**** provides rich interfaces, mainly including:

• 1 x DC 12V power interface (5.5mm × 2.1mm)
• 1 x Mic (microphone input)
• 1 x 3.5mm Audio Jack
• 2 x RJ45 (1000Mbps)
• 4 x USB3.0 (Gen1)
• 1 x USB-C (supports DP1.4)
• 1 x HDMI2.1 (up to 8K output)
• 1 x HDMI-IN
• 1 x VGA
• 1 x TF Card
• 1 x SIM card slot
• 1 x CAN
• 2 x RS232
• 1 x RS485

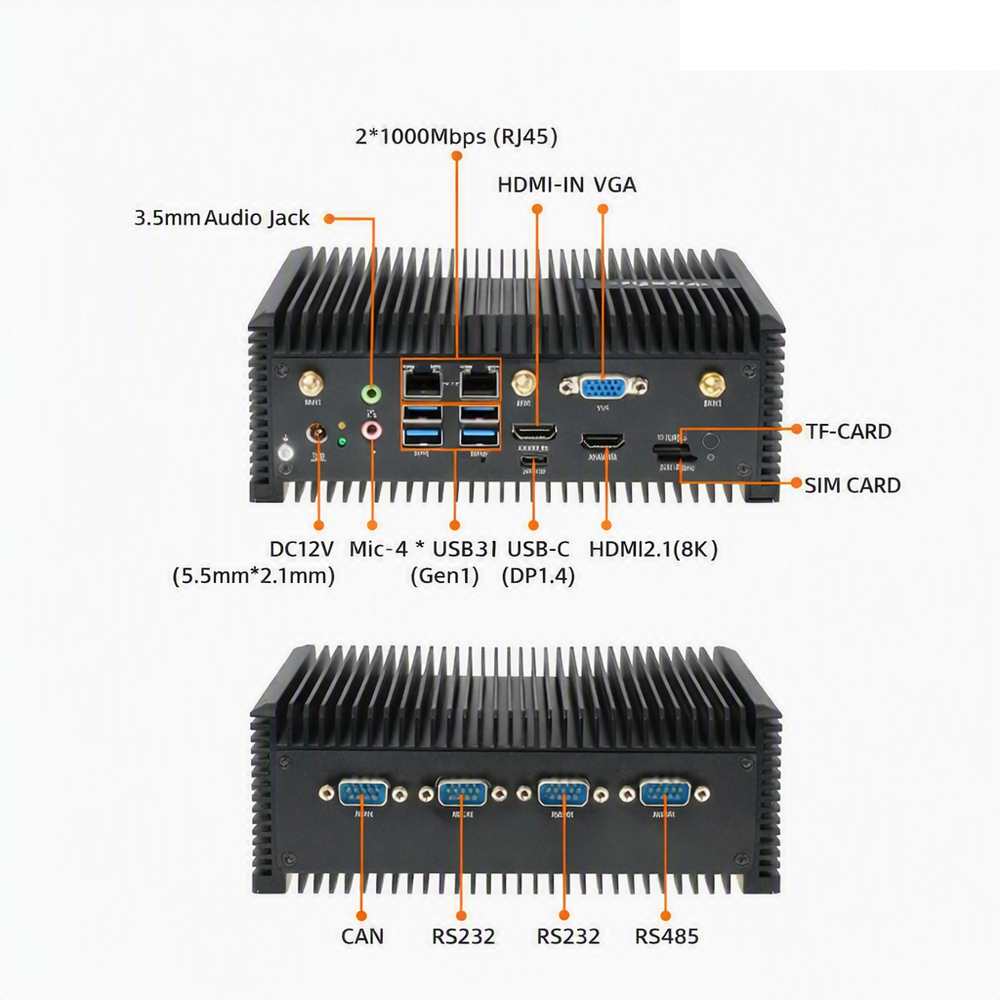

As shown in the figure below:

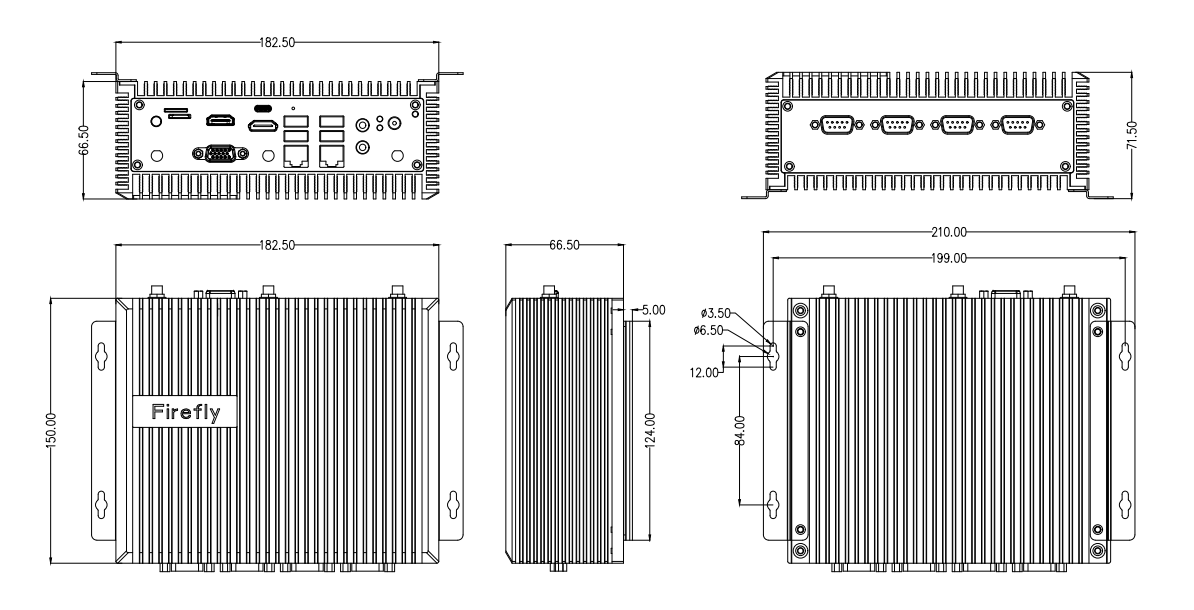

Structure and Dimensions

Resources and Support

• [Wiki]: Contains Android & Ubuntu driver development and other materials (refer to the iCore-3588Q Wiki)
• [Technical Forum]: A communication platform with more than 100,000 enterprise customers and users
