Introduction

Specification | Purchase | Downloads

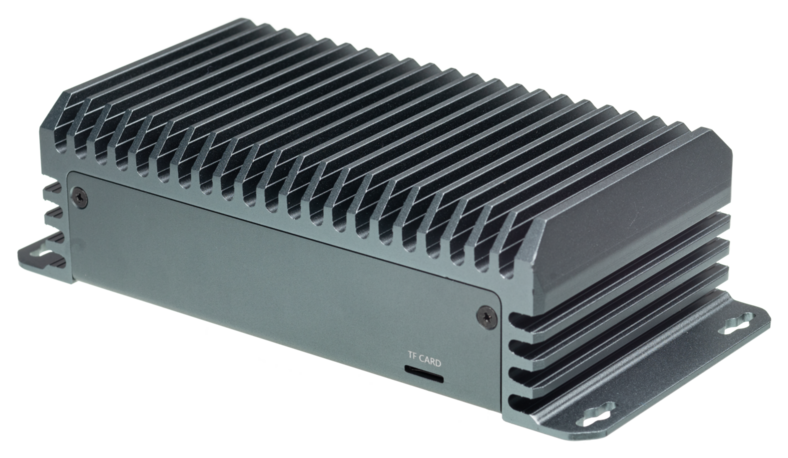

The EC-A3588L is an embedded host based on the high-performance AIO-3588L open-source platform. With an industrial-grade enclosure, it is dust-proof and anti-interference, runs stably for a long time, supports 8K encoding and decoding, and its rich interfaces make it easy to connect various industrial devices. It is based on Rockchip's new-generation flagship AIoT chip -- RK3588, which adopts the 8nm LP process; it is equipped with an octa-core (Cortex-A76 x 4 + Cortex-A55 x 4) 64-bit CPU with a frequency of up to 2.4 GHz. It integrates an ARM Mali-G610 MP4 quad-core GPU and a built-in AI accelerator NPU, which can provide 6 Tops of computing power and supports mainstream deep learning frameworks.

Interface Description

**** provides rich interfaces, mainly including:

• 1 x HDMI (8K output)
• 1 x HDMI-IN (HDMI input)
• 1 x Type-C
• 2 x USB 3.0
• 1 x RJ45 (Gigabit Ethernet)
• 1 x TF card slot
• 1 x SIM card slot (with 4G module)
• 1 x DC 12V power input
• Antenna connectors: BT/WB, 4G, WIFI
• Power button

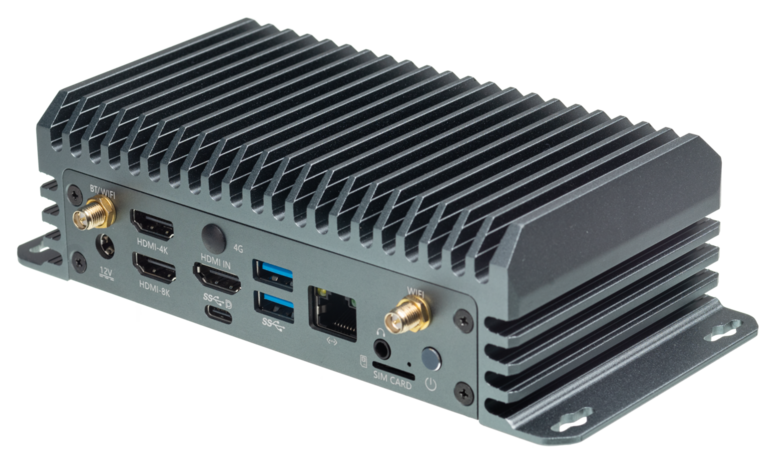

The host interfaces are shown below:

Structure and Dimensions

Resources and Support

• [Wiki]: Contains Android & Ubuntu driver development and other materials (refer to the Core-3588L Wiki)
• [Technical Forum]: A communication platform with more than 100,000 enterprise customers and users
