Introduction

Specification | Purchase | Downloads

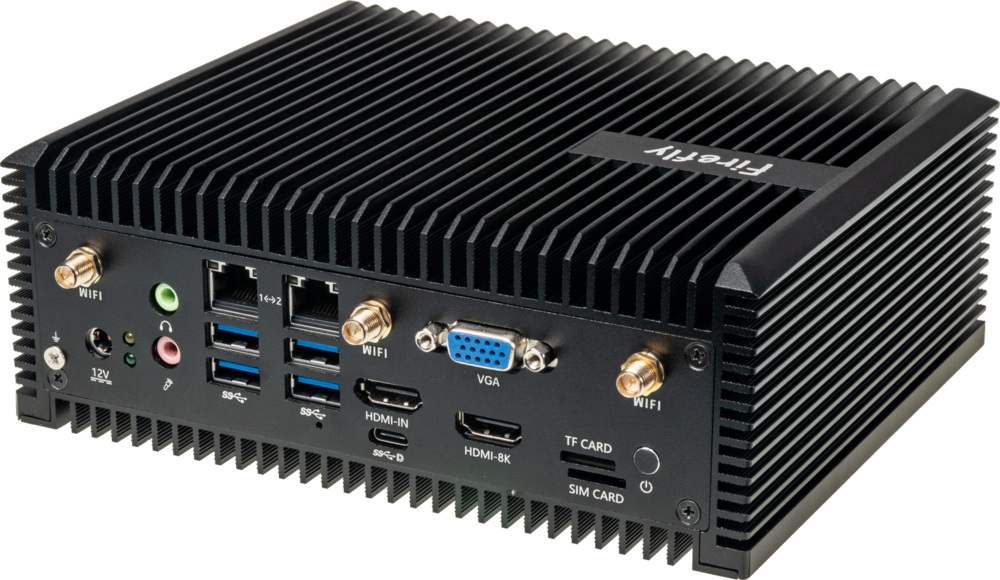

The EC-A3588JQ is an Octa-Core 8K AI Industrial Computer powered by the RK3588J octa-core 64-bit processor. It supports up to 32GB of RAM and 8K video encoding and decoding. It features a wide range of interface options, including Gigabit Ethernet, WiFi6, 5G/4G expansion, multiple video input and output, as well as M.2 SATA/PCIe SSD. Multiple operating systems are also supported. With industrial-grade chips and precision components, it delivers long and stable operation at a temperature between -40°C and 85°C, satisfying industrial-grade needs.

Interface Description

**** provides rich interfaces, mainly including:

1 x HDMI2.1 (up to 8K@60Hz output)
1 x HDMI2.0
1 x Display Port1.4 (up to 8K@30Hz output)
1 x USB3.0 OTG (Type-C)
1 x VGA
2 x MIPI-DSI
1 x MIPI-CSI
1 x EDP
1 x M.2 (SATA3.0/PCIe2.0)
1 x PCIe3.0x4
1 x TF Card
1 x 4G LTE
1 x 5G mobile network
1 x SIM card slot
4 x USB3.0
3 x USB2.0
1 x WIFI (supports WiFi6)
1 x Bluetooth
1 x FAN
2 x RJ45 (supports 1Gbps)
1 x Line-In
1 x RS485
2 x RS232
1 x CAN

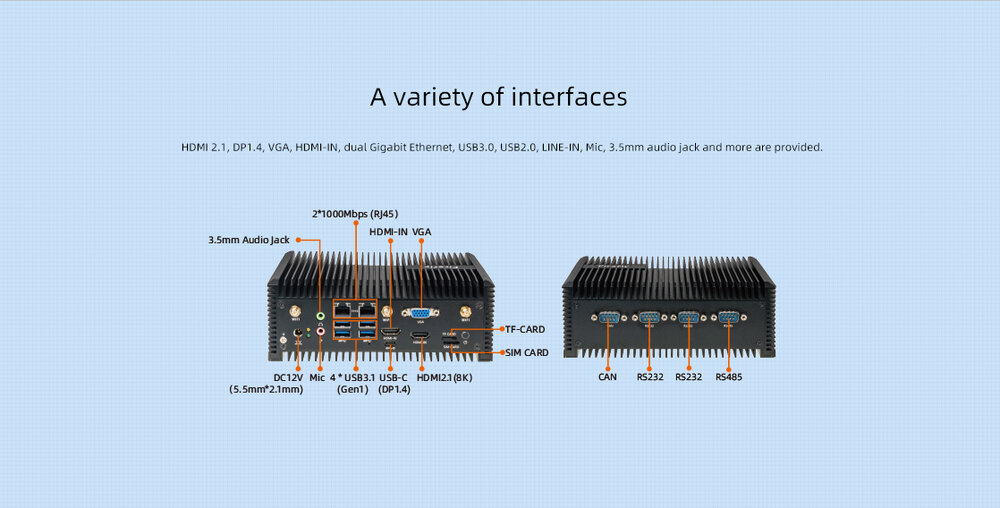

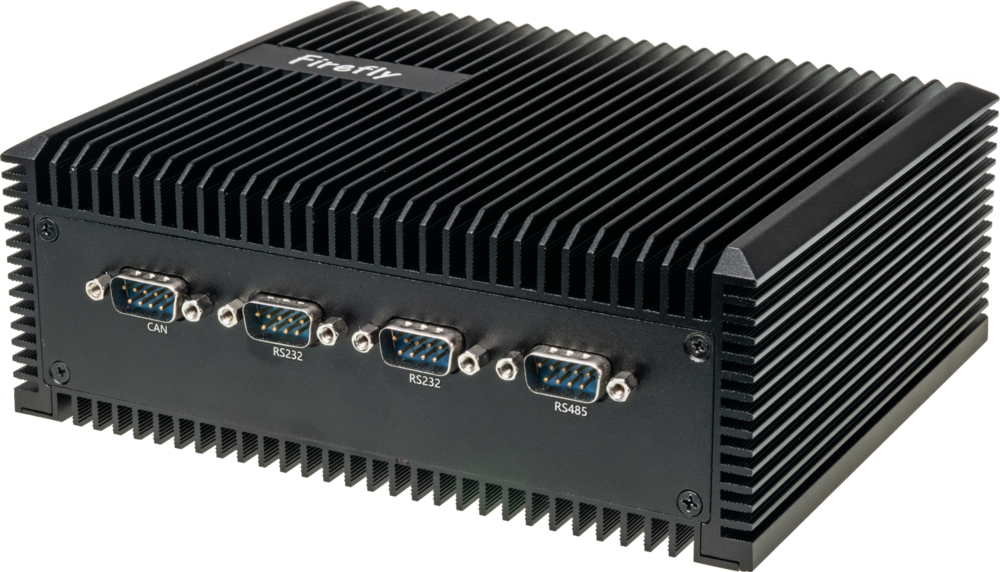

The host interfaces are shown below:

Structure and Dimensions

Resources and Support

[Wiki]: Contains Android & Ubuntu driver development and other materials (refer to the iCore-3588JQ Wiki)
[Technical Forum]: A communication platform with more than 100,000 enterprise customers and users

Technical Cases

Android multi-channel codec
Binocular camera data acquisition
Android dual-screen different display
Face recognition
