Introduction

Specification | Purchase | Downloads

The EC-A3568J embedded computer is based on the high-performance open-source AIO-3568J platform, with an industrial-grade enclosure that is dustproof and anti-interference for long-term stable operation. It supports 4K hardware decoding and provides rich interfaces for easy connection to various industrial devices. It is equipped with an ARM Cortex-A55 architecture quad-core 64-bit high-performance processor with a frequency up to 2.0GHz, an ARM G52 2EE GPU, and an RKNN NPU AI accelerator (integrated in the SoC).

Interface Description

EC-A3568J provides rich interfaces, mainly including:

• 1 x WAN (RJ45, 1000Mbps, PoE supported)
• 1 x LAN (RJ45, 1000Mbps)
• 1 x HDMI 2.0 (up to 4K output)
• 2 x USB 2.0
• 1 x USB 3.0
• 1 x USB 3.0 OTG
• 1 x TF Card
• 1 x SIM card slot
• 1 x MIC (microphone input)
• 1 x Phone (audio output)
• 1 x CAN (CAN/CANFD supported)
• 2 x RS232
• 2 x RS485
• 1 x SATA 3.0 (2.5-inch SSD/HDD)
• 2 x WiFi antennas (ANT)
• 1 x DC 12V power interface (DC-5.5*2.1mm, supports 6V-24V wide voltage input)
• 1 x Power Key

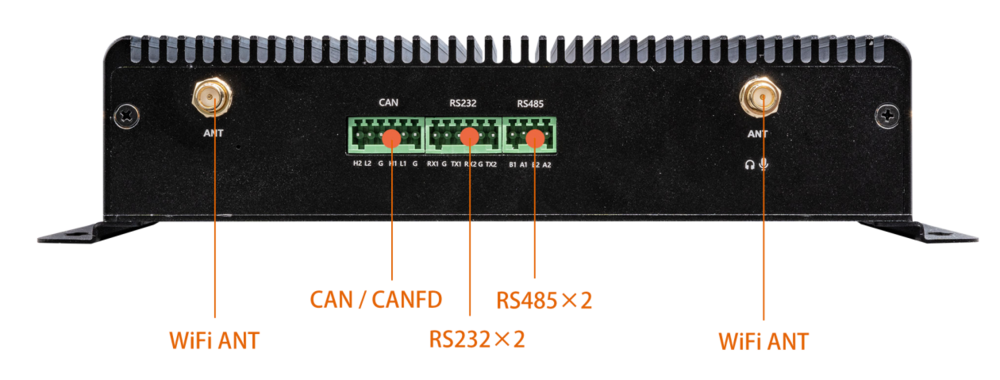

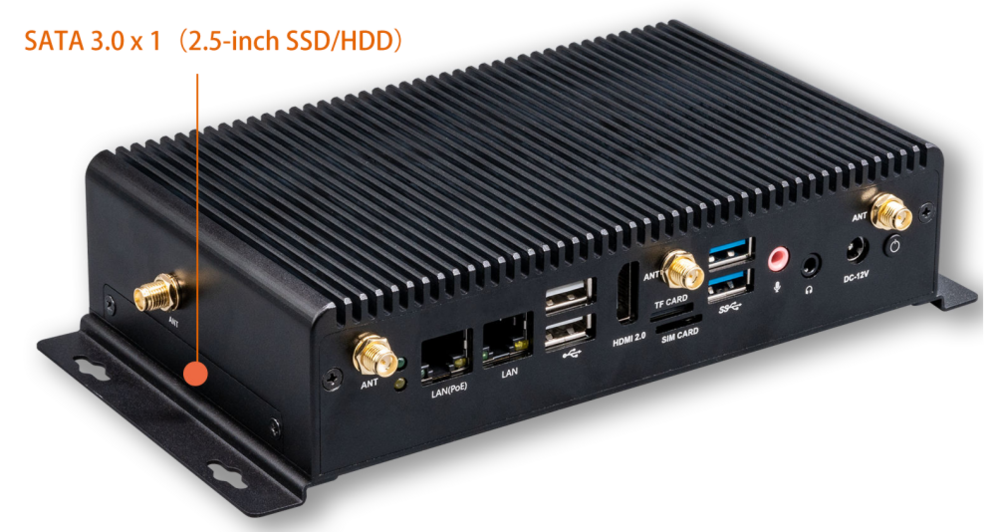

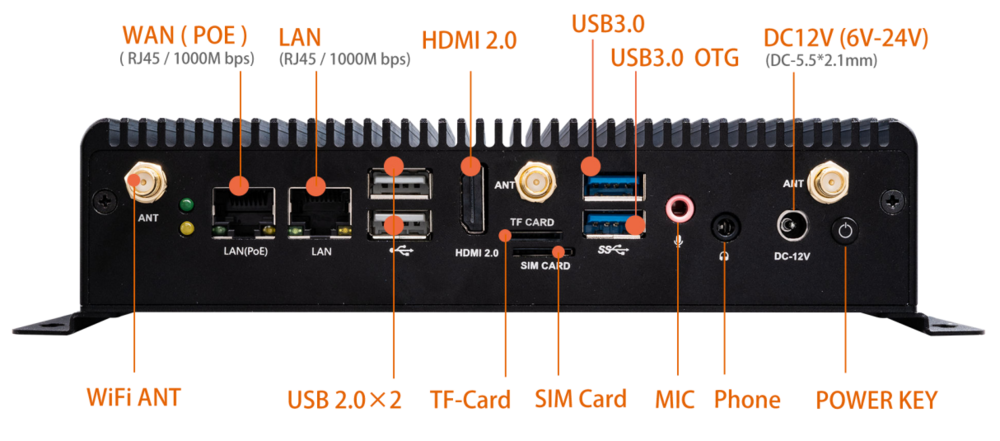

As shown in the figures below:

Structure and Dimensions

Resources and Support

• [Wiki]: Contains Android & Ubuntu driver development and other materials (refer to the AIO-3568J Wiki)
• [Technical Forum]: A communication platform with more than 100,000 enterprise customers and users
