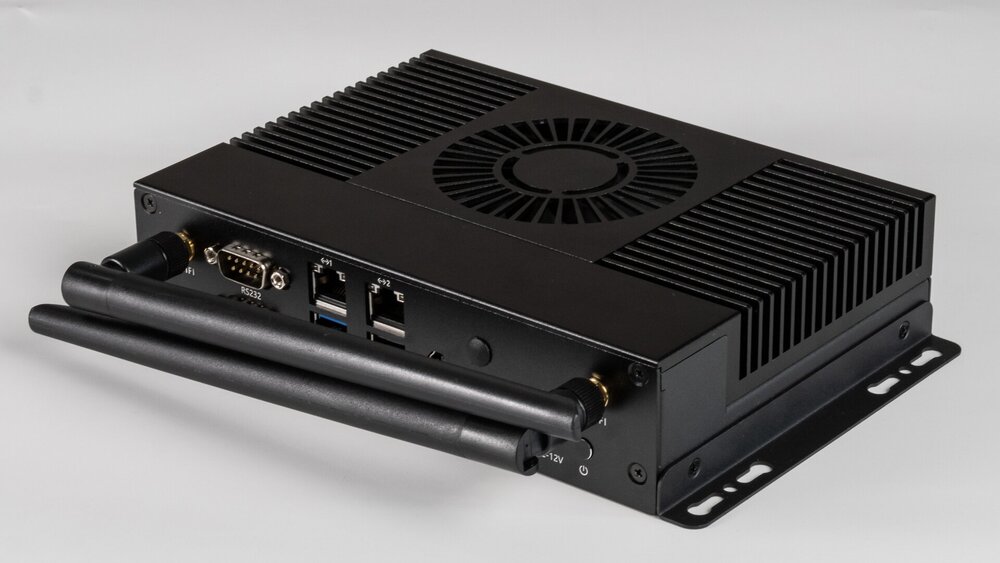

The EC-A1684JD4 utilizes the SOPHON AI computing processor BM1684, with the option for 12GB of RAM. It boasts an INT8 computing power of up to 17.6TOPS, supports mainstream programming frameworks, features a comprehensive toolchain for easy usability, and comes with low algorithm migration costs. It is well-suited for a variety of AI computing scenarios, including visual computing, edge computing, general computing services, intelligent transportation, unmanned supermarkets, drones, and more.

Interface Description

EC-A1684JD4 provides rich interfaces, mainly including:

• 12V Power interface (5.5*2.5mm)
• Power button
• RS232
• RS485
• 1000Mbps Ethernet x 2
• USB 3.0 x 2
• USB 2.0 x 2
• HDMI
• TF card slot
• SIM card slot
• BT antenna
• WIFI antenna x 2
• 4G antenna

As shown in the figure below:

结构尺寸

Resources and Support

• Core board Core-1684JD4 Wiki: including debug serial port, system firmware and other development materials
• Technical Support Forum: a communication platform with more than 100,000 enterprise customers and users
