The EC-A1684JD4 FD utilizes the SOPHON AI computing processor BM1684 and can be configured with 12GB of RAM. With an industrial-grade all-metal casing, aluminum alloy heat conduction, efficient heat dissipation, fanless design, and zero noise, it ensures stable operation and meets the demands of industrial applications. It boasts an INT8 computing power of up to 17.6TOPS, supports mainstream programming frameworks, features a comprehensive toolchain for easy usability, and comes with low algorithm migration costs. It is suitable for a wide range of AI computing scenarios, including visual computing, edge computing, general computing services, intelligent transportation, unmanned supermarkets, drones, and more.
Interface Description
EC-A1684JD4 FD provides rich interfaces, mainly including:
- 12V Power interface (5.5*2.5mm)
- Power button
- RS232
- RS485
- 1000Mbps Ethernet x 2
- USB 3.0 x 2
- USB 2.0 x 2
- HDMI
- TF card slot
- SIM card slot
- BT antenna
- WIFI antenna x 2
- 4G antenna

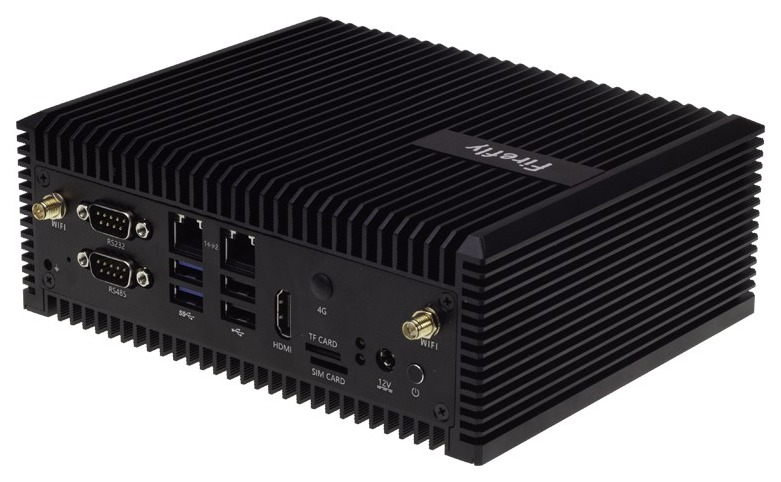

As shown in the figure below:
结构尺寸
Resources and Support
- Core board Core-1684JD4 Wiki: including debug serial port, system firmware and other development materials
- Technical Support Forum: a communication platform with more than 100,000 enterprise customers and users
