Introduction

Specification | Purchase | Downloads

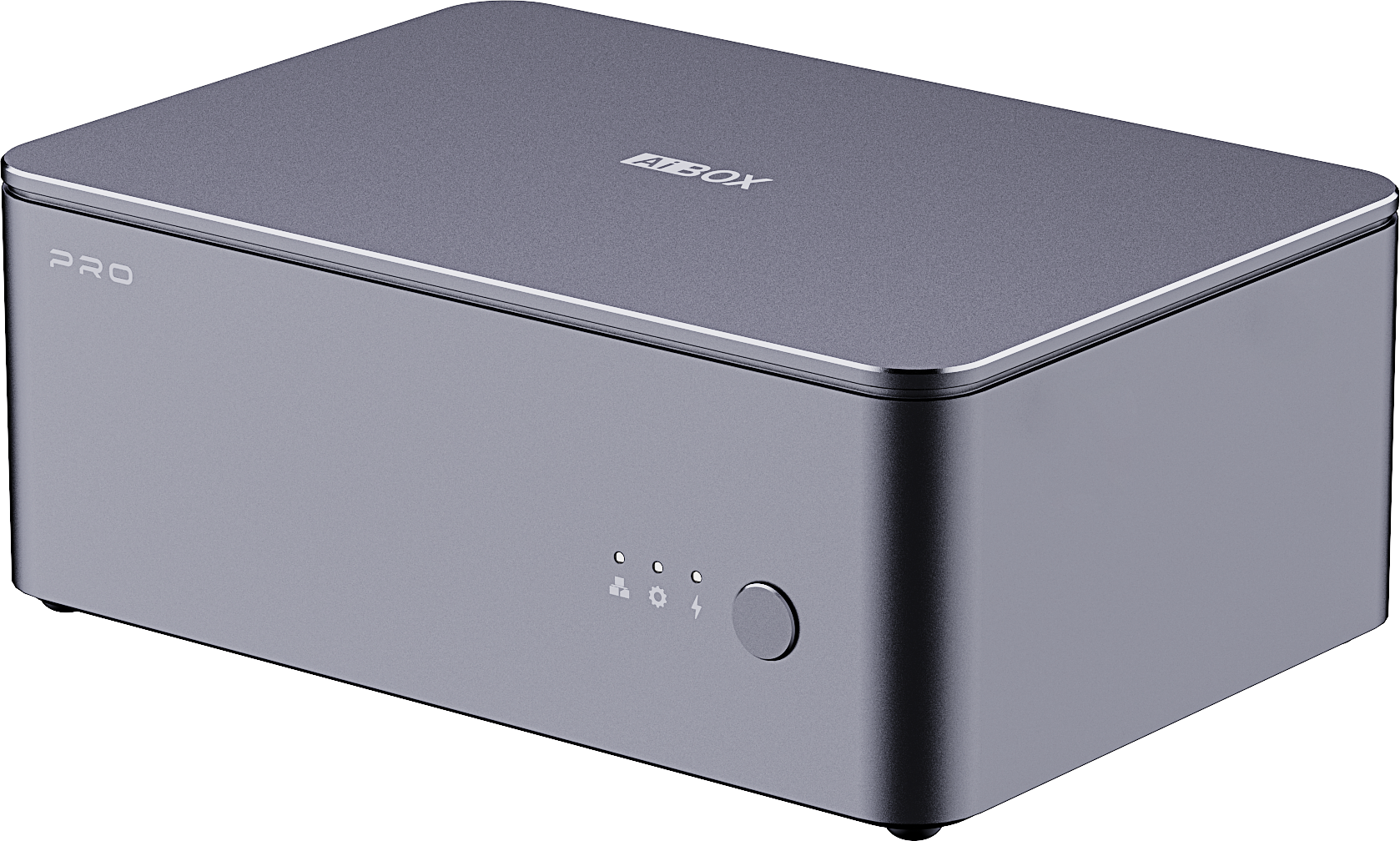

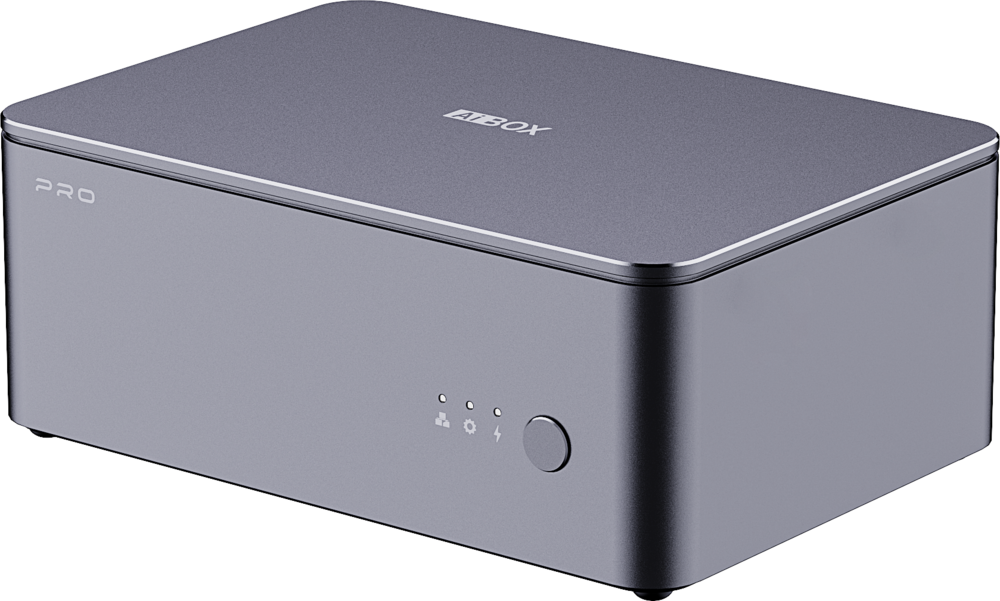

AIBOX PRO features a dual-core module design with dual-core heterogeneous architecture. The two core modules work independently for multi-task parallel processing. The main controller Core-3588JD4 integrates an ARM Mali-G610 MP4 quad-core GPU with a built-in AI accelerator NPU, delivering 6 TOPS of computing power and supporting mainstream deep learning frameworks. The co-processor RK1828 supports deployment of large models such as Qwen3-8B and Qwen2.5-VL-7B, enabling multi-channel video recognition, object detection and tracking, visual development, and more. One box meets all your personalized AI deployment needs.

Interface Description

AIBOX PRO provides rich interfaces, mainly including:

• 12V Power Interface (5.5*2.1mm)
• Power Button
• MaskRom Button
• Gigabit Ethernet x 2
• USB 3.0 x 2
• Line out & Line in
• HDMI
• TF Card Slot
• SIM Card Slot
• Type-C (OTG/Flash)
• Type-C (Debug)
• RS485
• CAN
• DI/DO Optocoupler Isolation
• Power Indicator
• Wi-Fi Antenna x 2 (requires the corresponding Wi-Fi module)
• 4G Antenna (requires the corresponding 4G/5G module)

It also provides one internal PCIe expansion slot and one SATA interface.

PS: The interfaces listed above are supported by RK3588. If the RK3576 core board is used, Wi-Fi, the PCIe expansion slot, and the SATA module are not available due to hardware limitations.

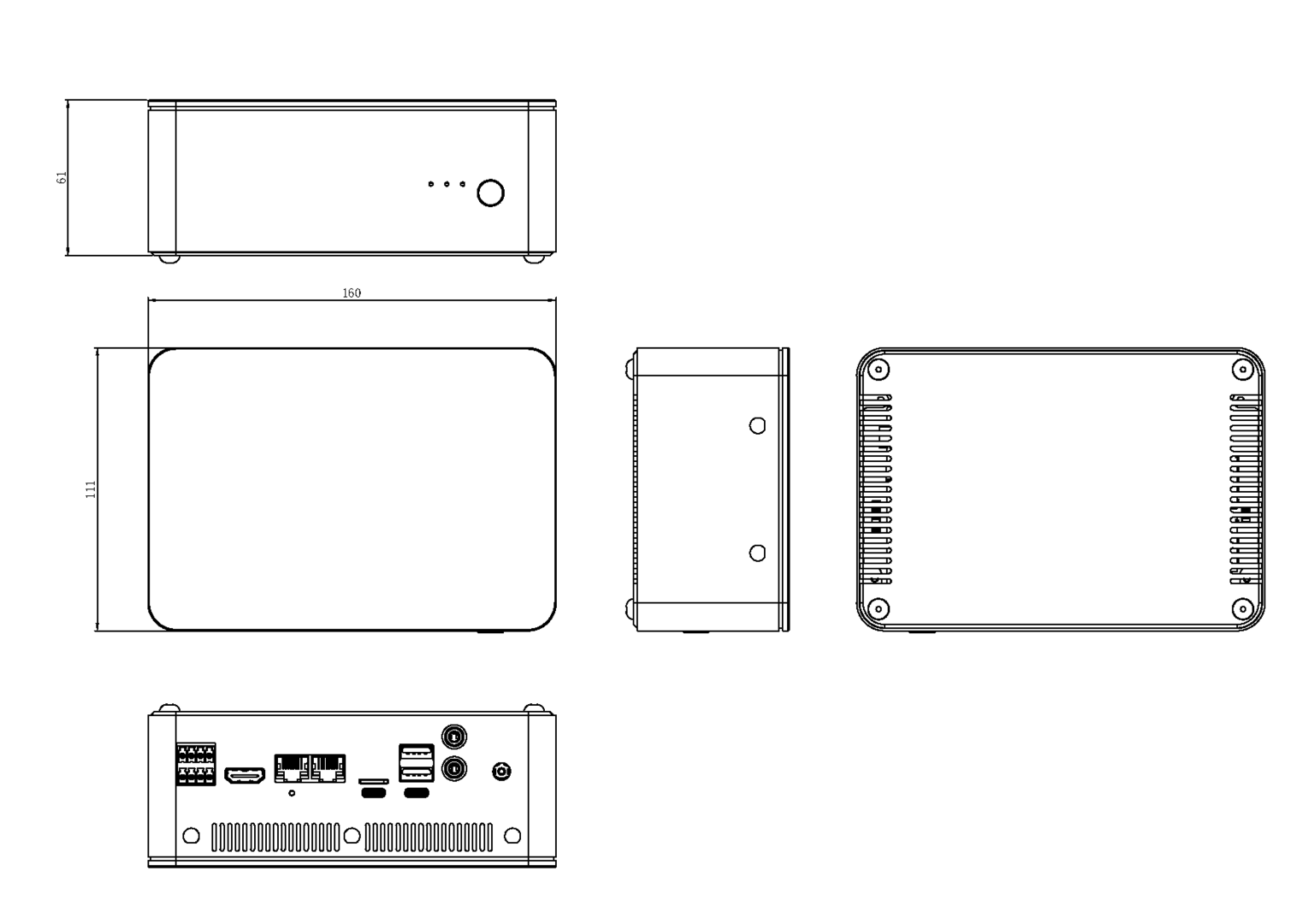

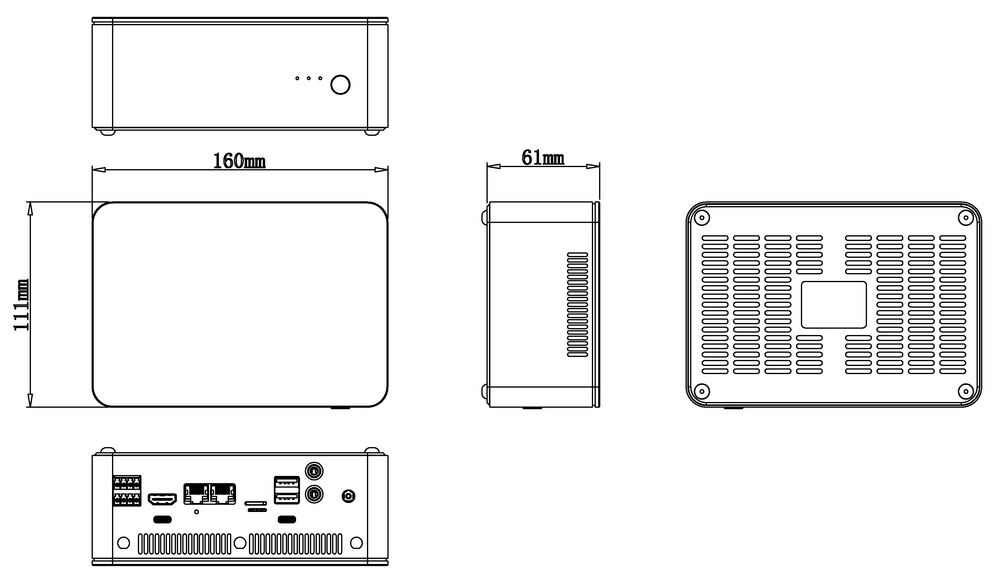

Structure and Dimensions
