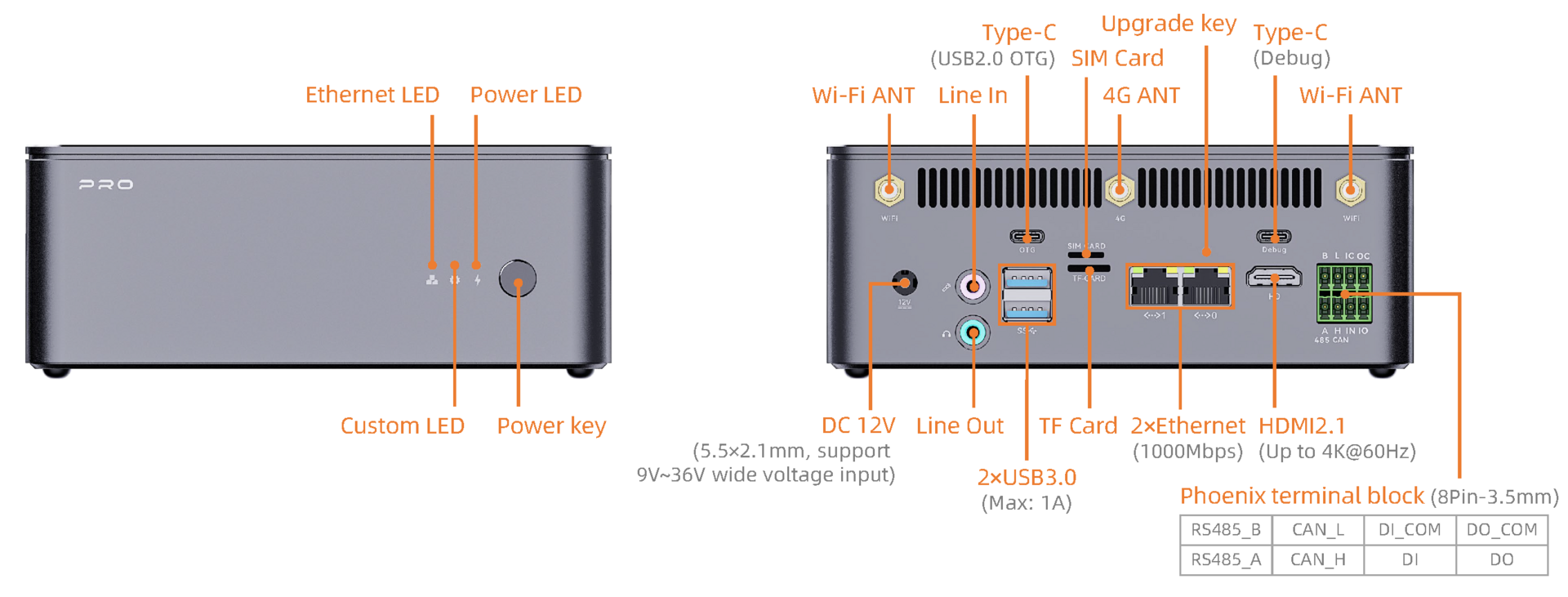

Interface Introduction

AIBOX-PRO has rich interfaces, mainly including:

• 12V Power Interface (5.5*2.1mm)
• Power Button
• MaskRom Button
• Gigabit Ethernet x 2
• USB 3.0 x 2
• Line out & Line in
• HDMI
• TF Card Slot
• SIM Card Slot
• Type-C (OTG/Flash)
• Type-C (Debug)
• RS485
• CAN
• DI/DO Optocoupler Isolation
• Power Indicator
• Wi-Fi Antenna x 2 (requires the corresponding Wi-Fi module)
• 4G Antenna (requires the corresponding 4G/5G module)

It also provides one internal PCIe expansion slot and one SATA interface.

PS: The interfaces listed above are supported by RK3588. If the RK3576 core board is used, Wi-Fi, the PCIe expansion slot, and the SATA module are not available due to hardware limitations.
