Interface Definition

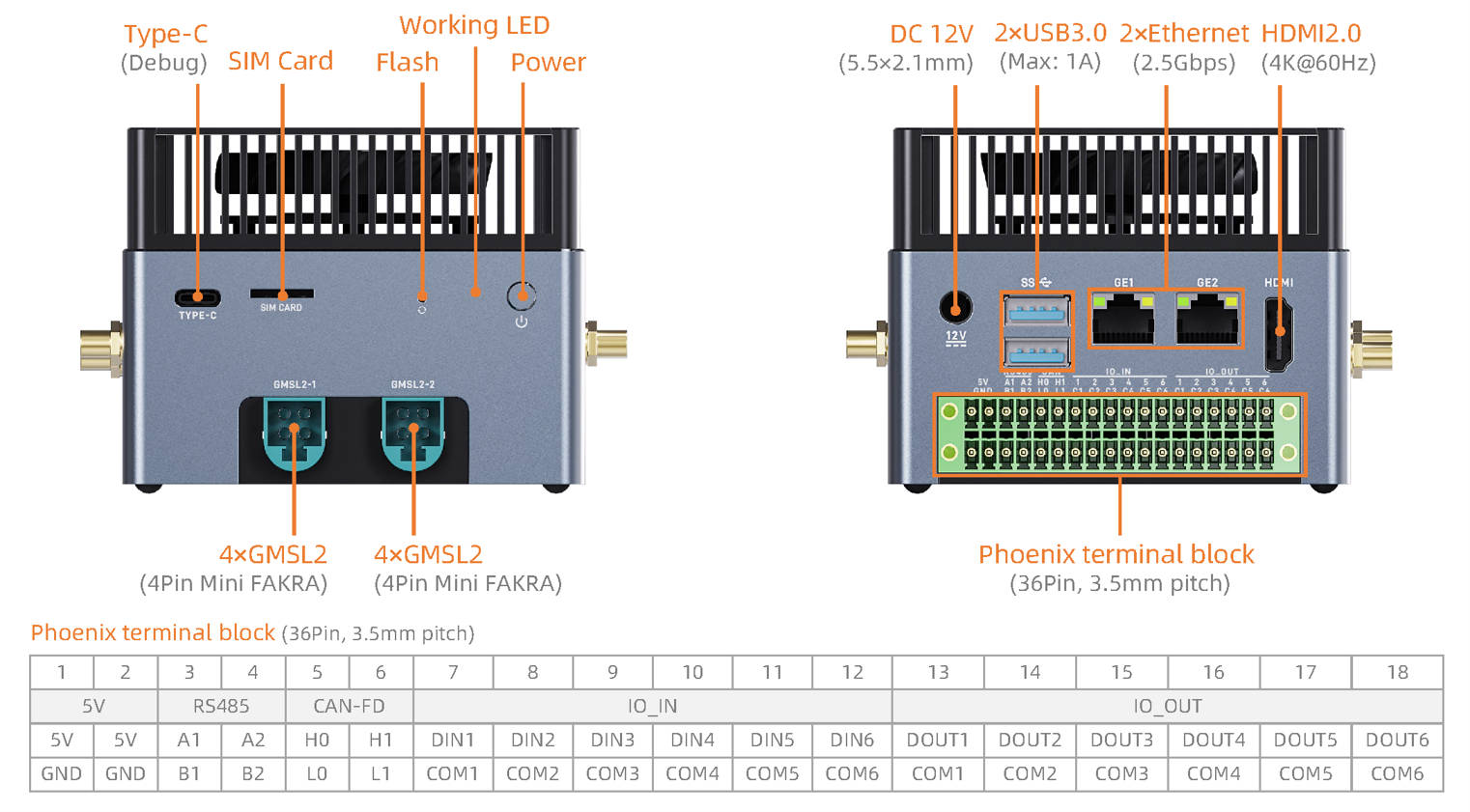

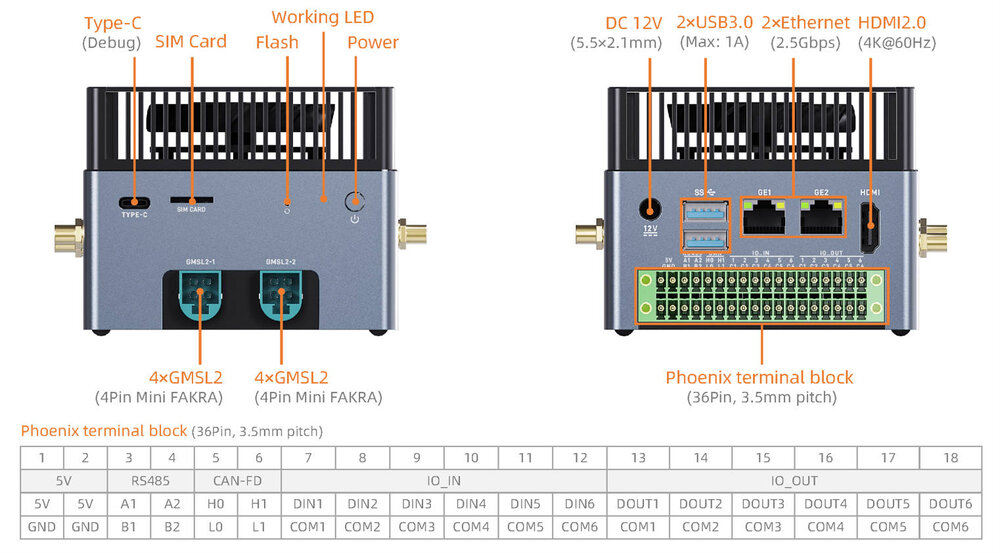

AIBOX-9075 provides these interfaces:

• DC Power Port
• 2 x USB3.0
• 1 x Type-C (For debug console)
• 2 x 2.5G Ethernet RJ45
• 1 x HDMI 2.0
• 1 x SIM Card Slot
• 2 x GMSL2 4Pin Mini FAKRA
• 2 x RS485
• 2 x CAN-FD
• 6 x IO in
• 6 x IO out
• Download Key
• Power Key
