Introduction

Specification | Purchase | Downloads

AIBOX-8550 features the Qualcomm hexa-core (1+2+3) QCS8550 AI processor with an integrated 48 TOPS NPU, supporting mainstream AI models and deep learning frameworks. The built-in Adreno 740 GPU enables ray tracing and 8K video codec. Housed in an industrial-grade all-metal casing for efficient heat dissipation, it ensures 24/7 stable operation to meet rigorous industrial demands. It is widely used in intelligent surveillance, AI education, computing power services, edge computing, private deployment of large models, data security and privacy protection, etc.

Interface Description

AIBOX-8550 provides rich interfaces, mainly including:

• DC Power Port
• 2 x USB3.0
• 1 x Type-C (For firmware download)
• 1 x Console (For Debug)
• 2 x 1000M Ethernet RJ45
• 1 x HDMI 2.0
• 1 x TF Card slot
• Power Key

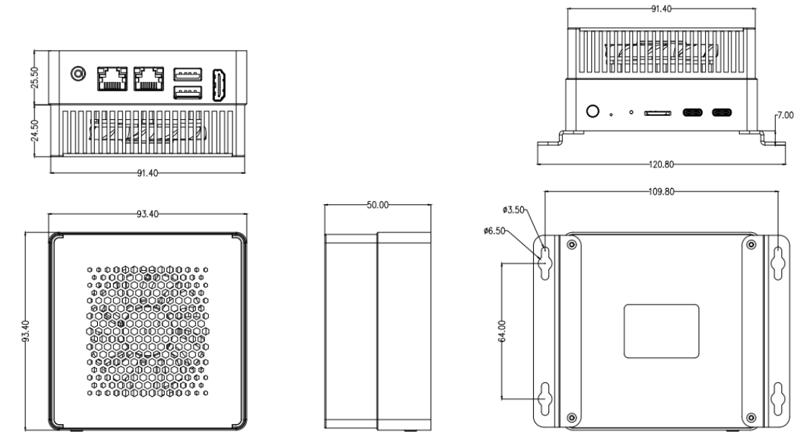

Structure and Dimension

结构尺寸
