Introduction

Specification | Purchase | Downloads

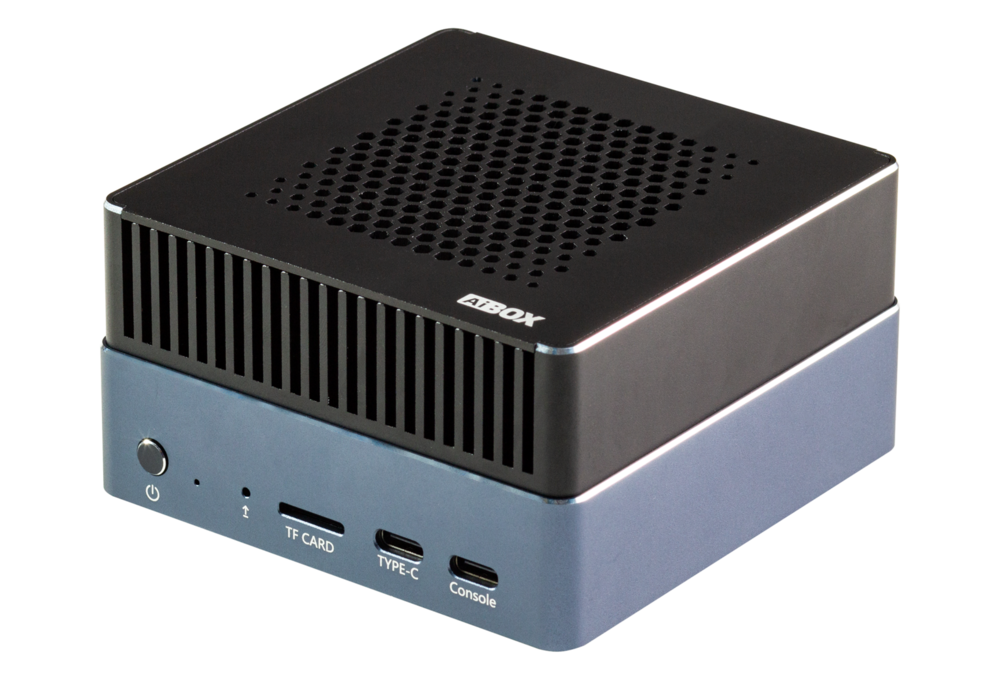

AIBOX-3576 is equipped with the Rockchip octa-core 64-bit AIOT processor RK3576. It utilizes advanced manufacturing processes for high performance and low power consumption. The device features an ARM Mali G52 MC3 GPU and integrates a 6 TOPS computing power NPU, supporting private deployment of large-scale parameter models under the Transformer architecture. It also supports traditional network architectures such as CNN, RNN, and LSTM, various deep learning frameworks, and custom operator development. Additionally, it supports Docker container management technology, making it a single-box solution for personalized AI deployment.

Interface Description

AIBOX-3576 provides rich interfaces, mainly including:

• 12V power interface (5.5*2.5mm)
• Power button
• MaskRom button
• Gigabit Ethernet x 2
• USB 3.0 x 2
• HDMI
• TF card slot
• Console (Debug Serial)
• Type-C (for flashing)
• Power indicator LED

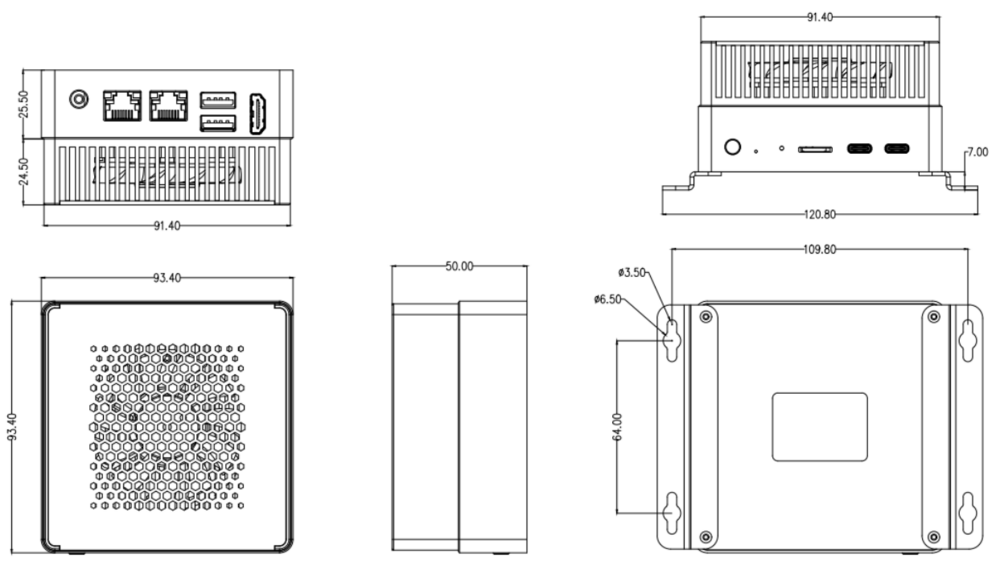

Structure and Dimensions

Resources and Support

• Technical Support Forum: a communication platform with more than 100,000 enterprise customers and users
