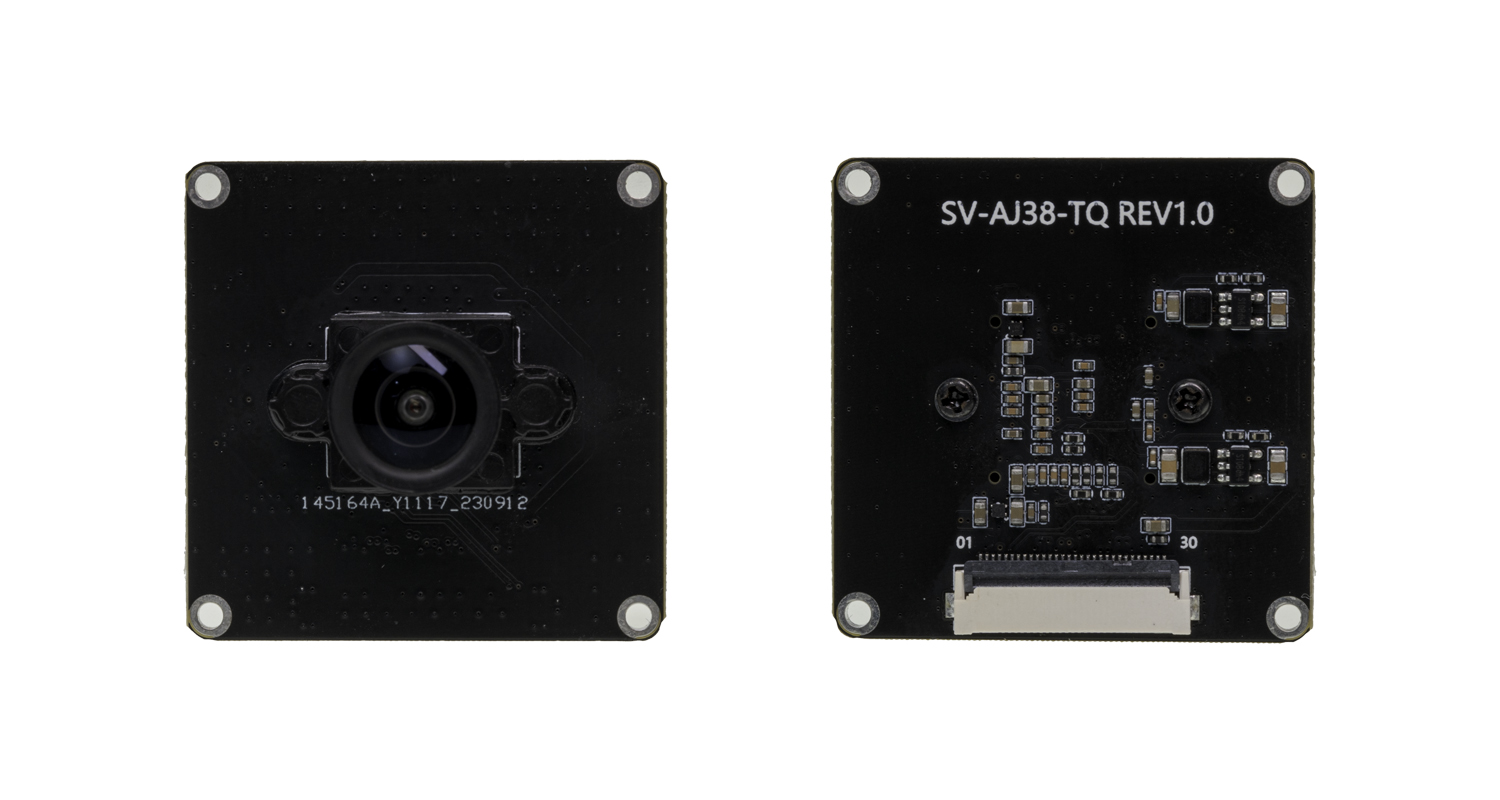

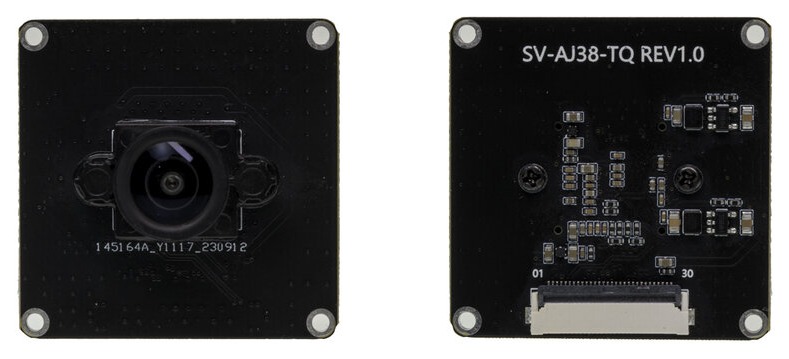

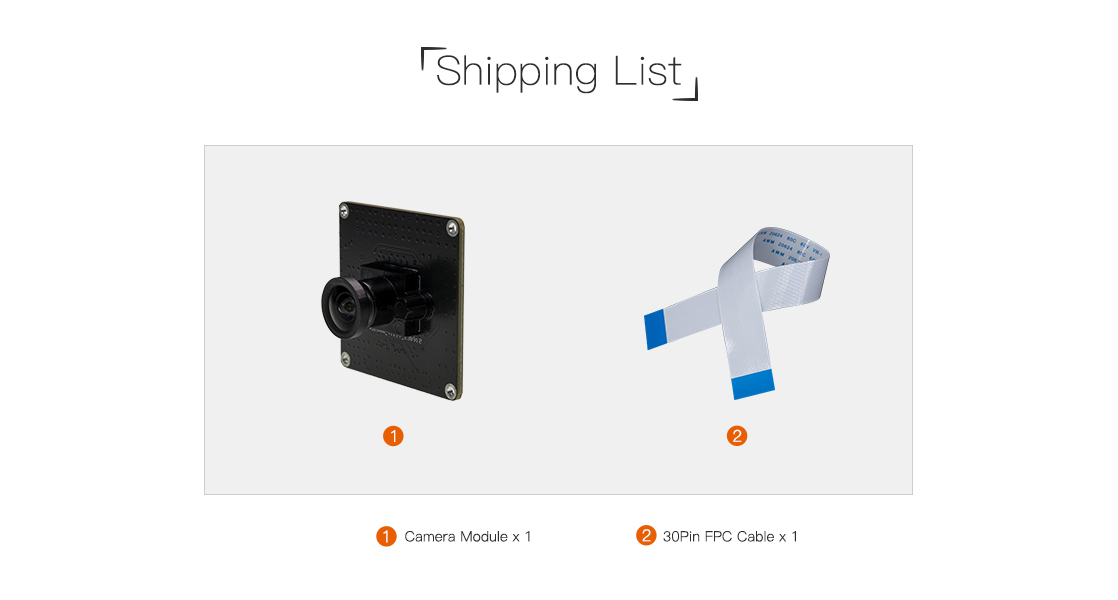

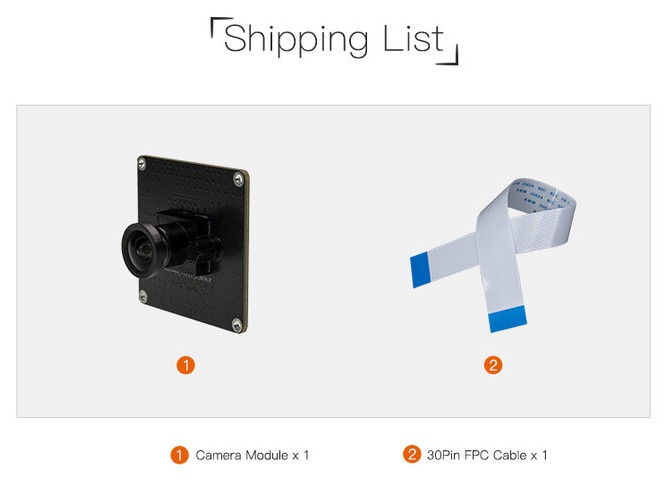

CAM-8MS1M(IMX415) is a 1/2.8” industrial-grade HD WDR sensor, suitable for various complex light environments.MIPI standard interface, supports 7x24h operating.It is mainly used in scenarios such as face recognition access control, face recognition attendance, gate machines and identification machines.
| Parameters |
|---|
| Camera | CAM-8MS1M(IMX415) |
| CMOS Sensor | 1/2.8 sensor/RGB |
| Max Resolution | 3840(H) x 2160(V) (16 mode) |
| Sensor Pixel Size | 1.45um x 1.45um |
| Low Lux | ≤0.5Lux/F2.0 |
| Image Transmission Rate | 3840x2160/60fps |
| SNR | TBD |
| WDR | TBD |
| FOV | D.3° H: 111° V: 76.4° |
| Aperture | F2.0 |
| Focal Length | 1.95mm |
| Distortion | TV Distortion<-3.3% |
| Lens CRA | TBD |
| Lens Temperature Range | -20° /+60° |
| Lens structure | 1G5P |
| Video Output Format | RAW10/RAW12 |
| IR | NC |
| Power Supply | 5V,Ripple not higher than 100mv. |
| Connection Way | 0.5mm FPC
(SV-AJ38-TQ REV1.0 is 30pins, Board needs to be based on the hardware interface) |
| Power Consumption | TBD |
| Operating Temperature | -10° C ~ +55° C (Humidity : 10%RH ~ 75%RH) |
| Storage Temperature | -20° C~ +65° C (Humidity : 10%RH ~75%RH) |

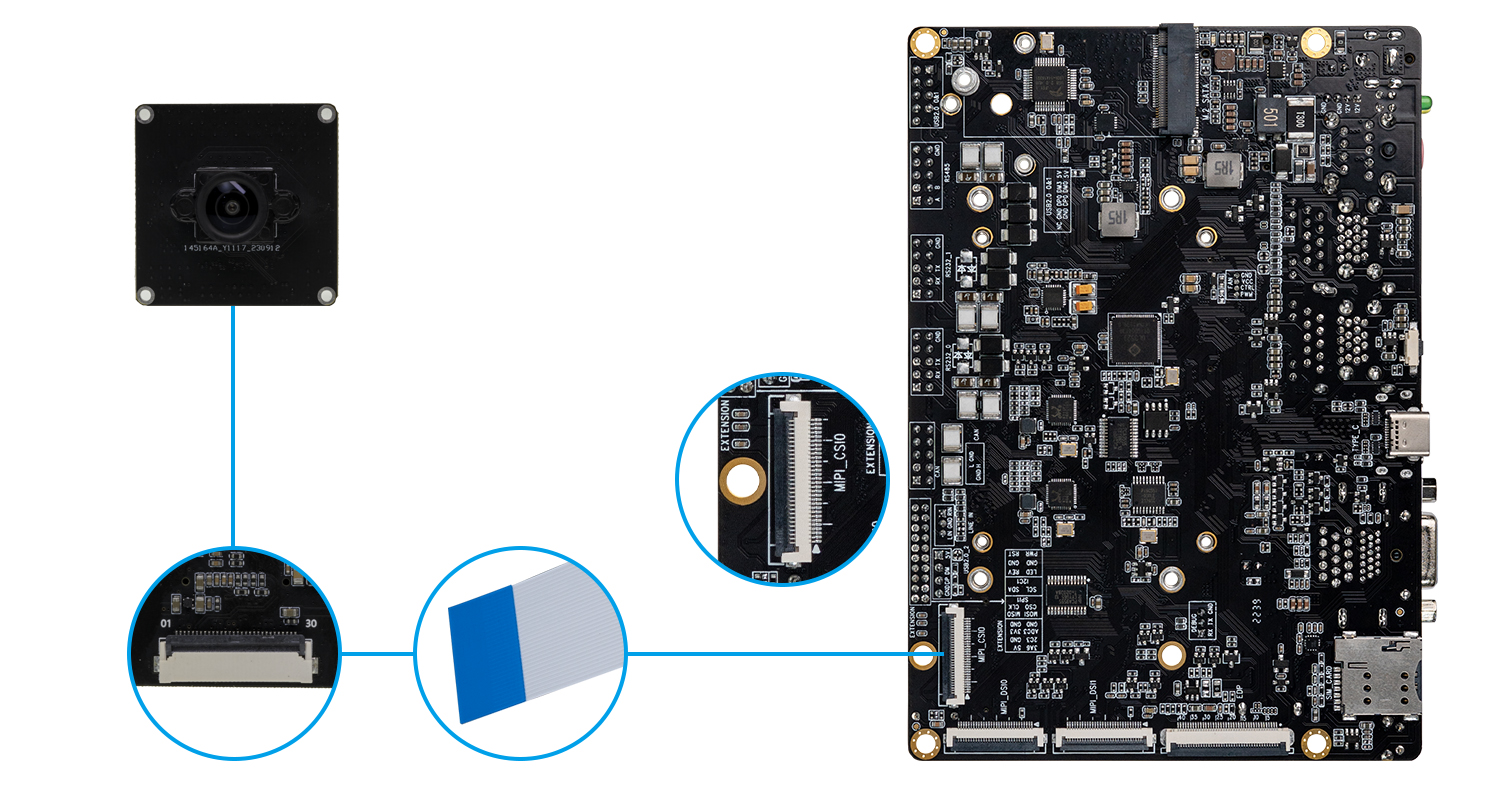

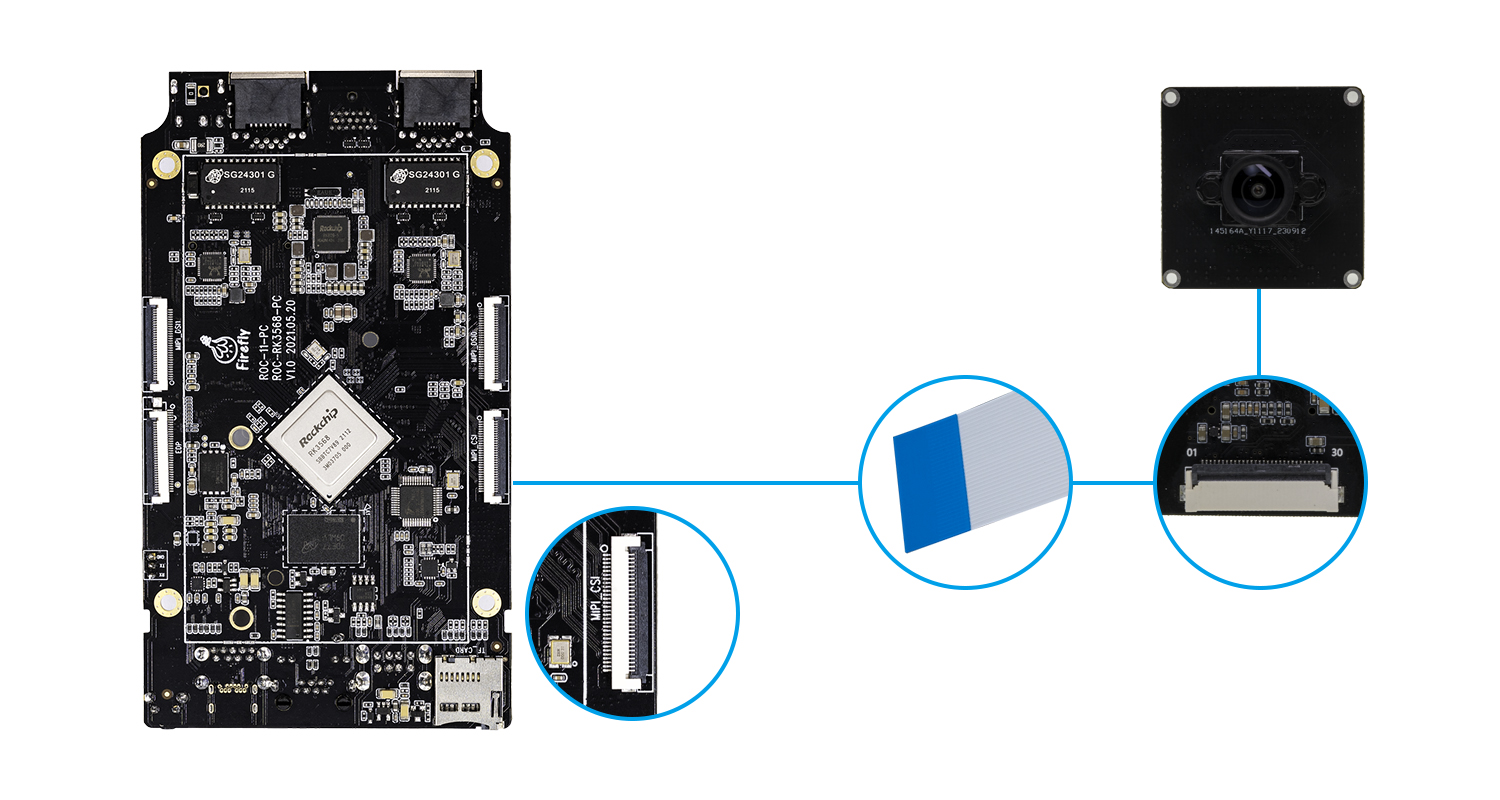

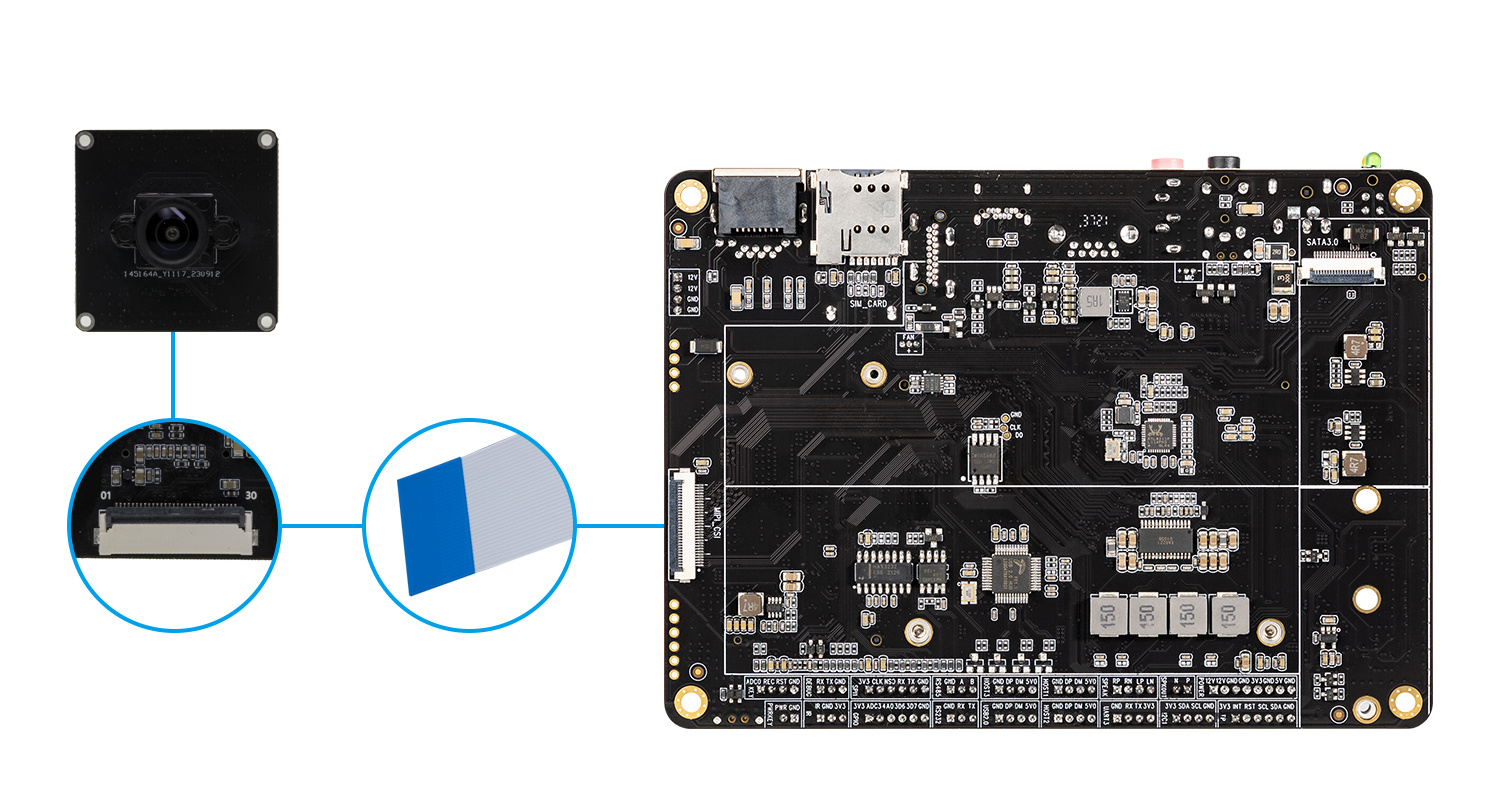

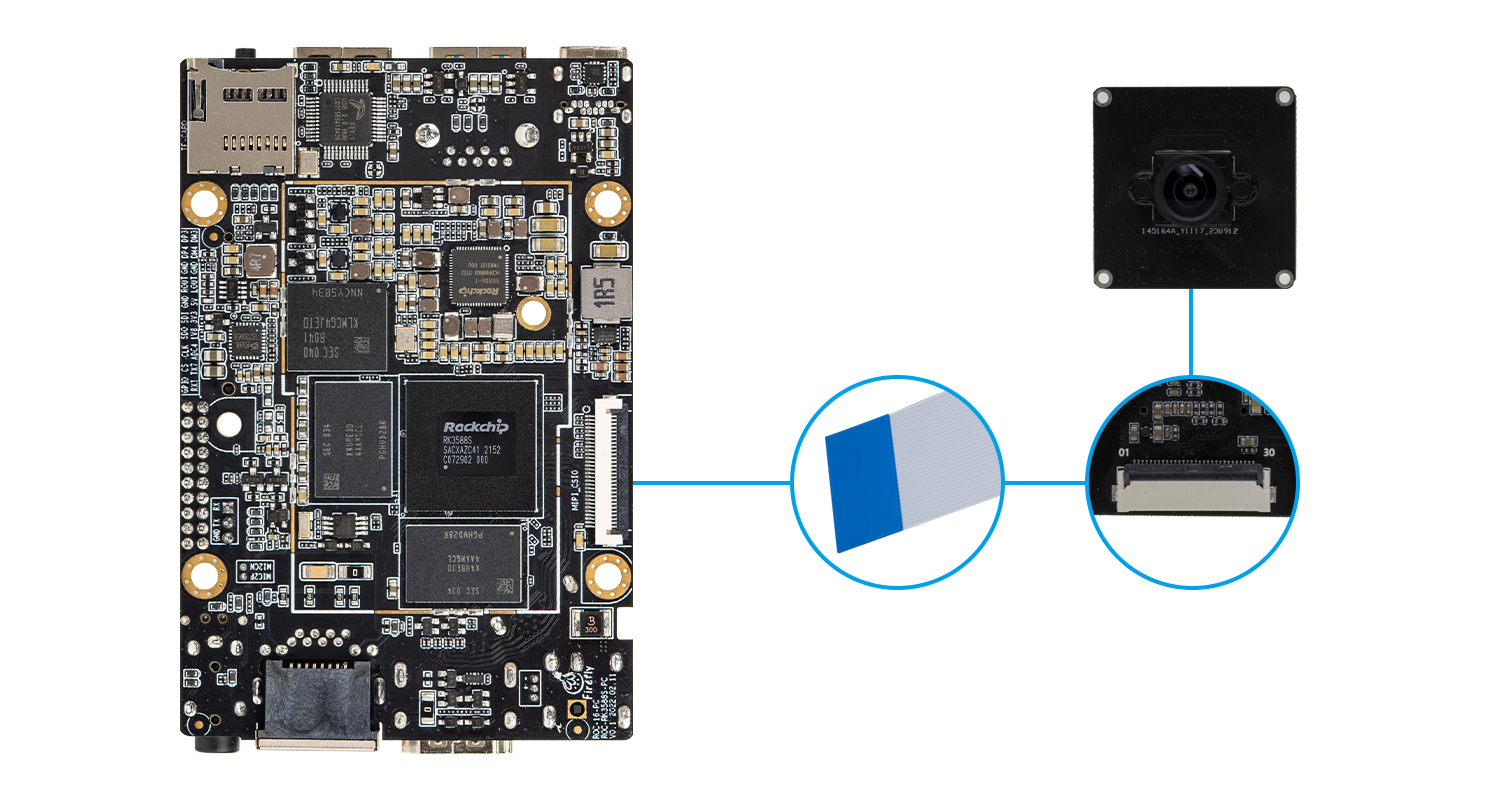

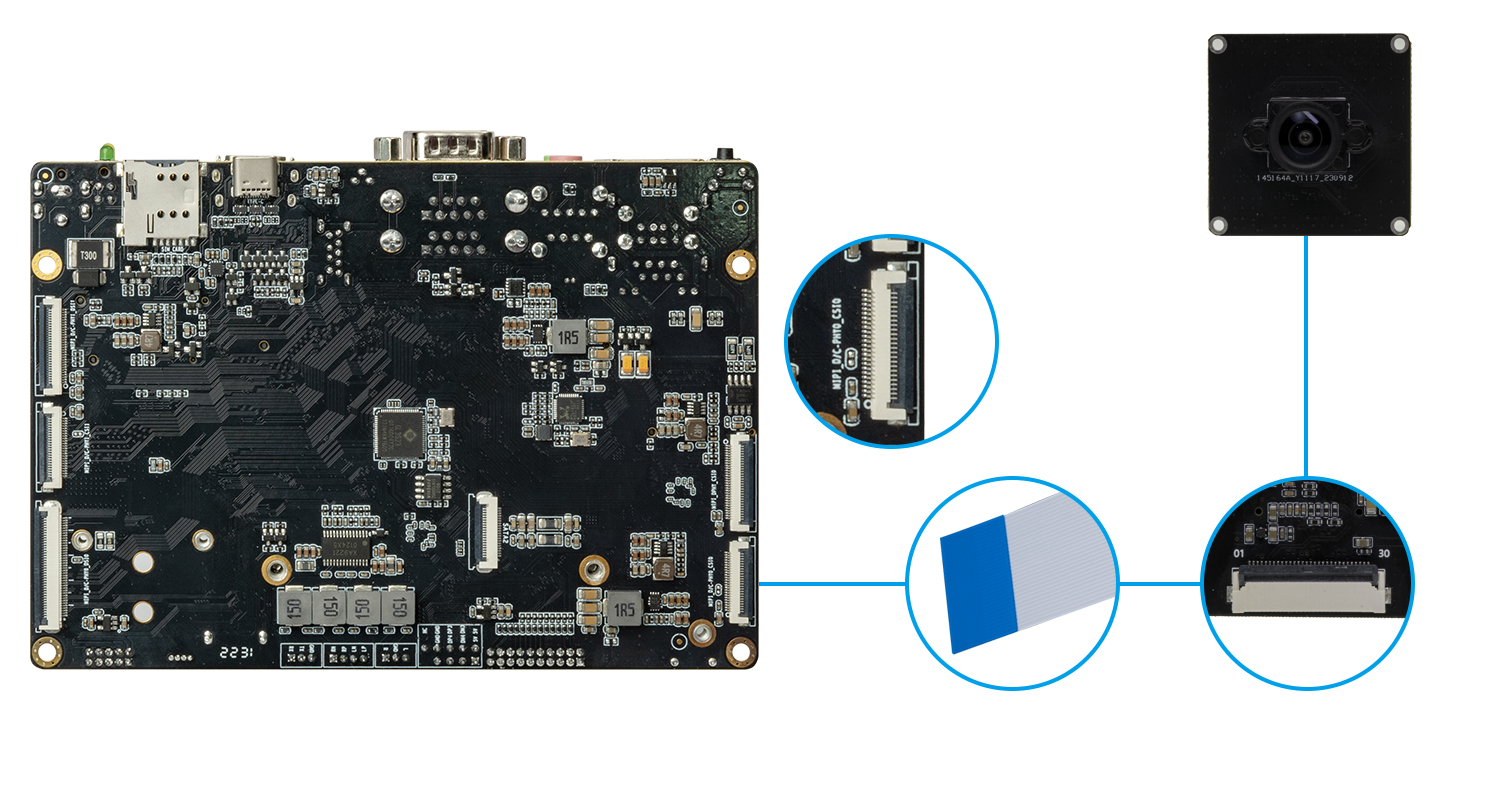

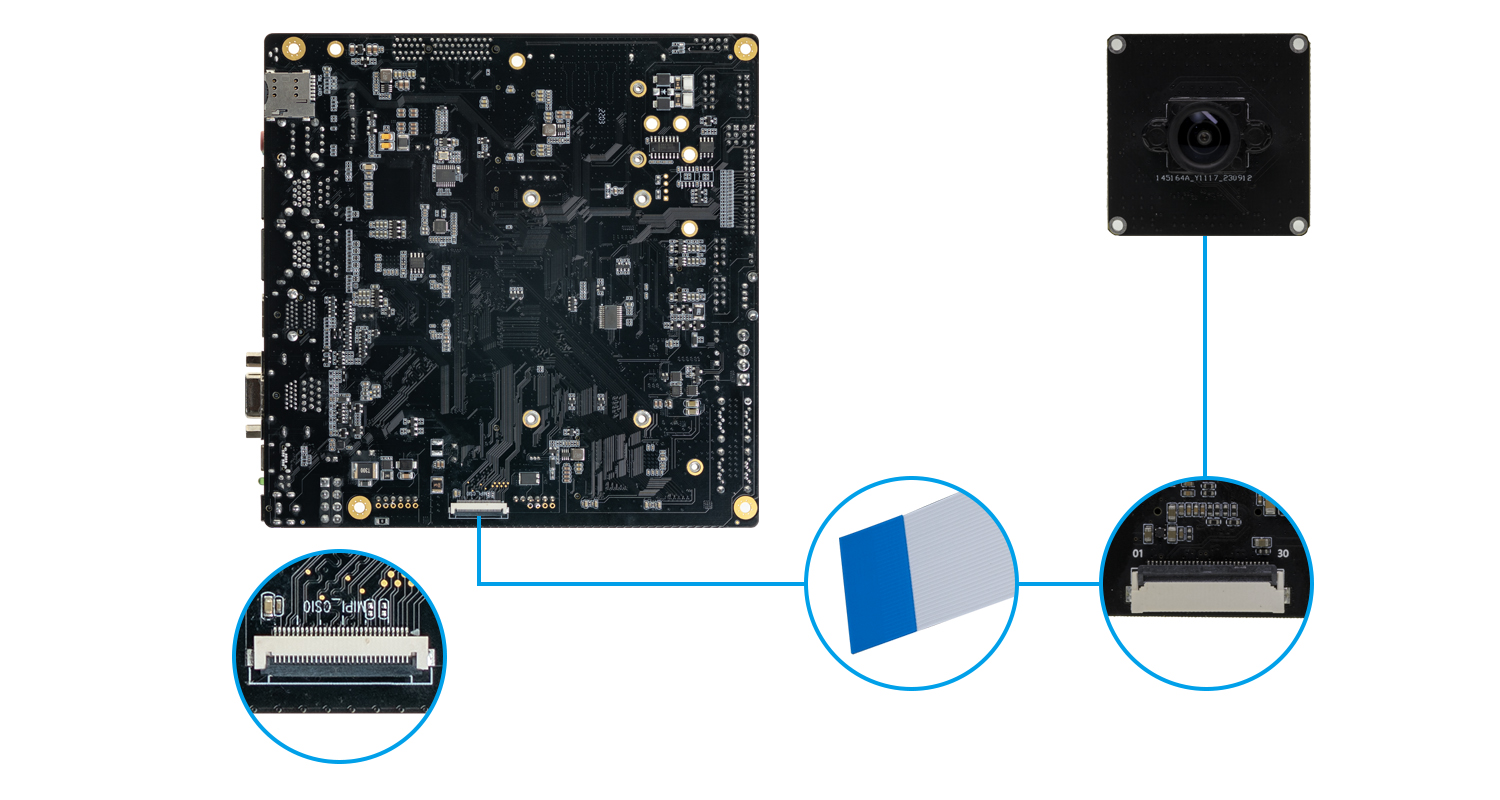

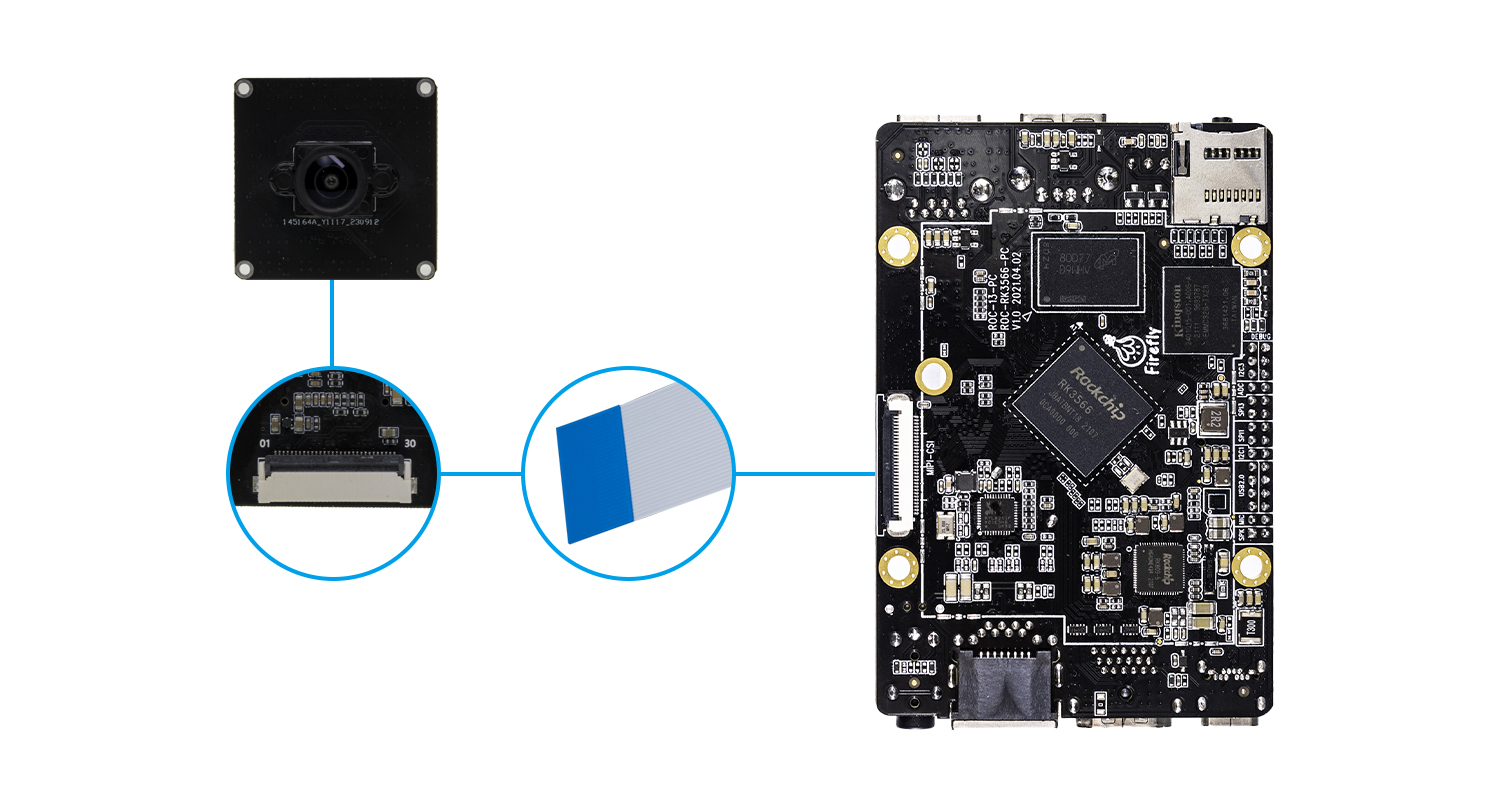

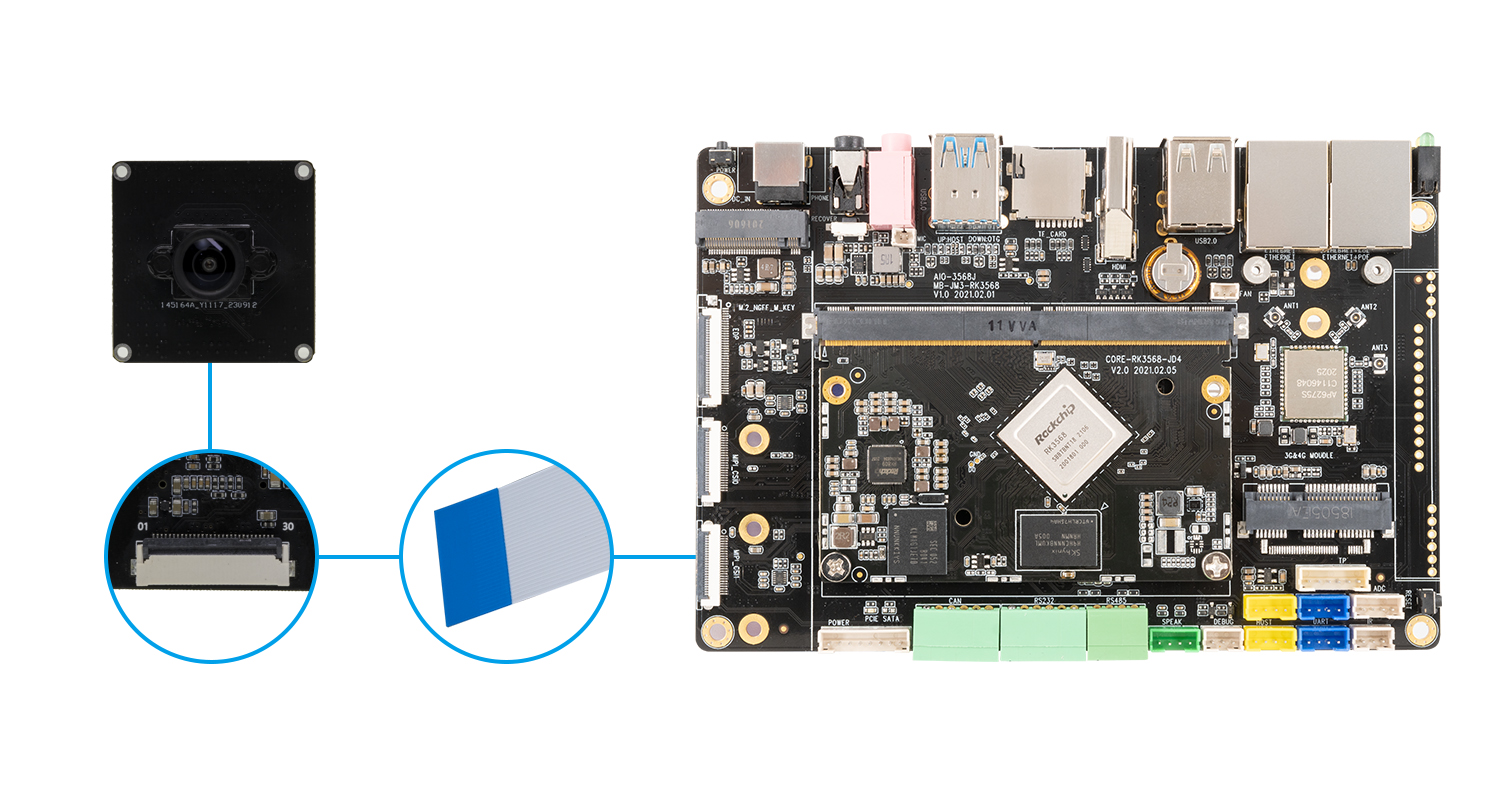

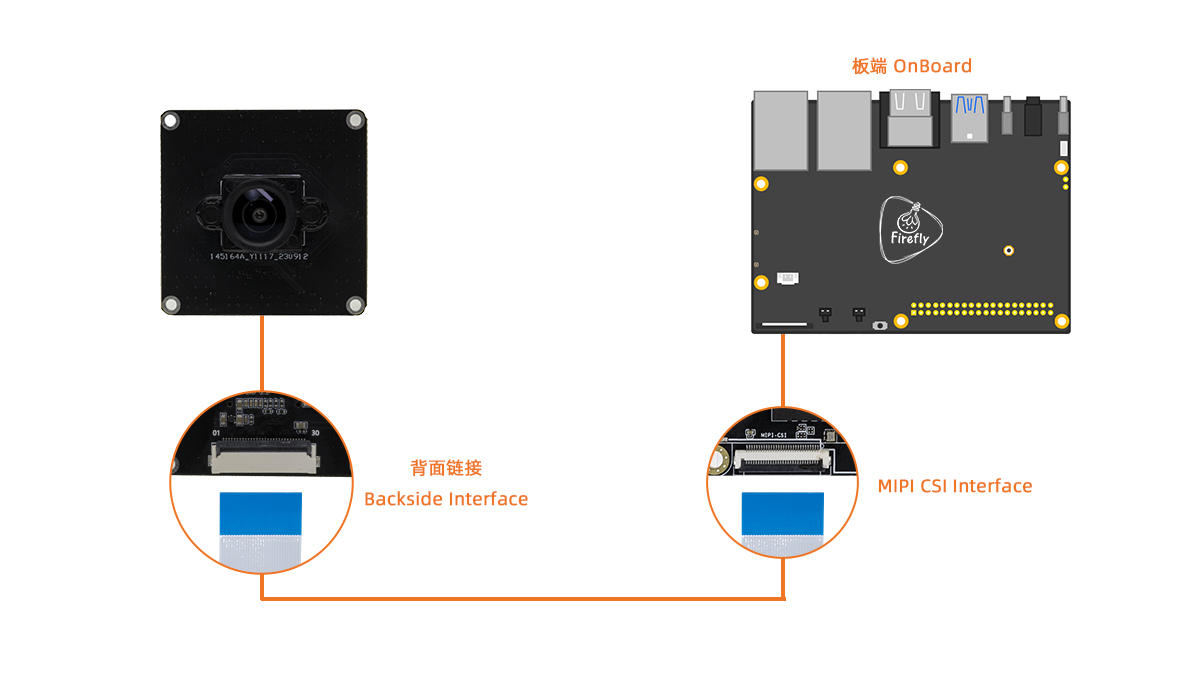

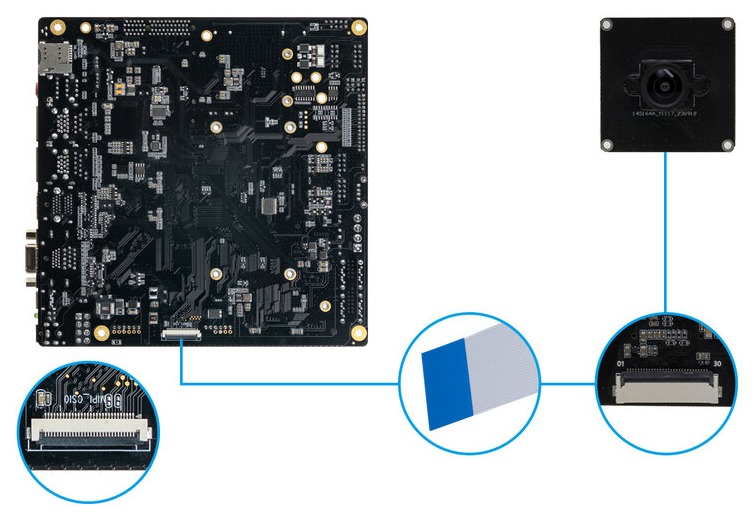

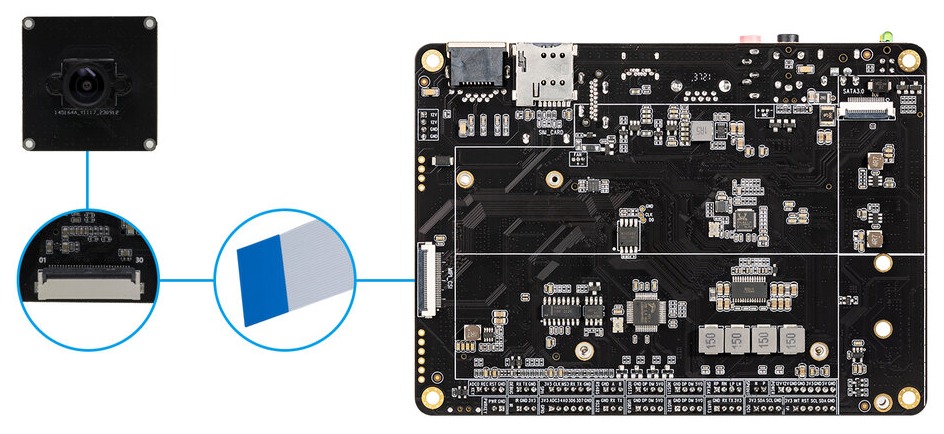

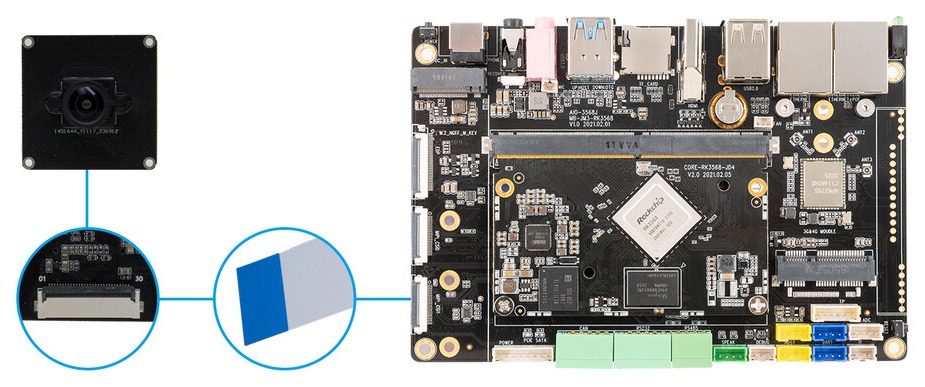

The Firefly development board has two MIPI CSI interfaces, one is a 30pin interface and the other is a 24pin interface. When connecting, please pay attention to the direction and connect only to the corresponding pin number interface. The CAM-8MS1M(IMX415) supports the 30pin interface. Here is a unified interface diagram:
Note: Do not connect to an interface with the words MIPI DSI as this may cause damage to the module or development board.
Related documents and firmware download, see the official website Resource Download
| CPU | USB upgrade | SD upgrade |
|---|
| RK3566 | AIO-3566JD4, ROC-RK3566-PC | AIO-3566JD4, ROC-RK3566-PC |
| RK3568 | AIO-3568J, ROC-RK3568-PC, ROC-RK3568-PC SE | AIO-3568J, ROC-RK3568-PC, ROC-RK3568-PC SE |
| RK3588 | ITX-3588J, ROC-RK3588S-PC, AIO-3588SJD4,AIO-3588Q, AIO-3588JD4 | ITX-3588J, ROC-RK3588S-PC, AIO-3588SJD4 ,AIO-3588Q, AIO-3588JD4 |
| RK3576 | ROC-RK3576-PC, AIO-3576JD4, AIO-3576Q | ROC-RK3576-PC, AIO-3576JD4, AIO-3576Q, AIO-3576C |
| System | Board |
|---|
| Android12.0 | ITX-3588J,ROC-RK3588S-PC,AIO-3588SJD4,AIO-3588Q |
| Buildroot | ITX-3588J,ROC-RK3588S-PC,AIO-3588SJD4,AIO-3588Q,AIO-3588MQ,AIO-3588JQ,AIO-3588JD4 |
| Ubuntu20.04/Ubuntu22.04 | ITX-3588J,ROC-RK3588S-PC,AIO-3588SJD4,AIO-3588Q,AIO-3588MQ,AIO-3588JQ, AIO-3588JD4 |
| Debian11/Debian12 | ITX-3588J,ROC-RK3588S-PC,AIO-3588SJD4,AIO-3588Q,AIO-3588MQ,AIO-3588JQ, AIO-3588JD4 |
