Display

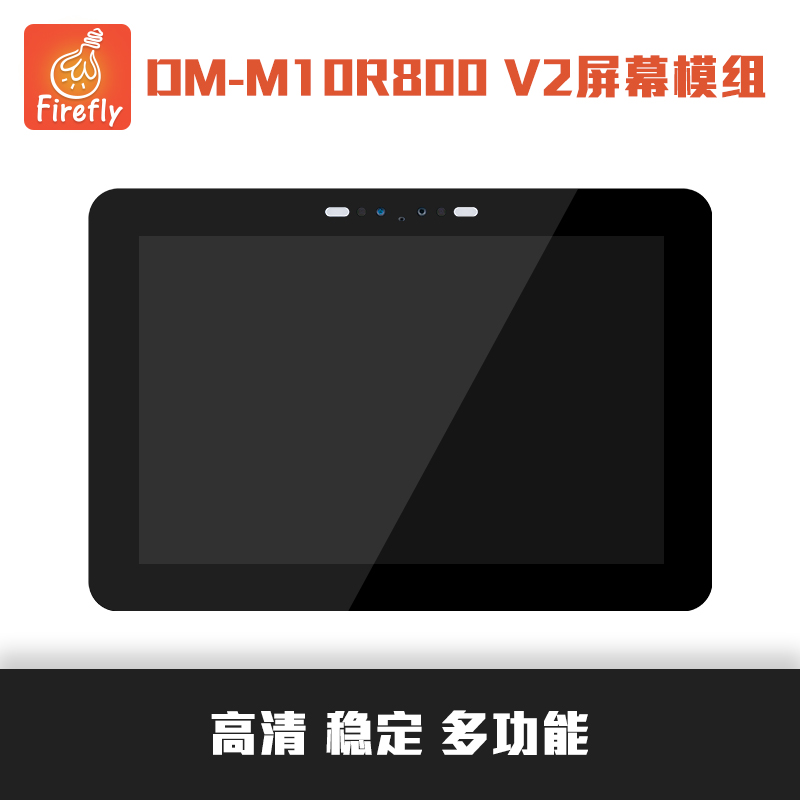

• The screen that comes with RV1126/RV1109 is 10.1-inch IPS full-vision screen module MIPI multi-touch 1280x800 pixels. The MIPI screen is shown in the figure:

• Screen rotation

#Specify the QT output platform and rotate the screen 90° clockwise
export QT_QPA_PLATFORM=linuxfb:rotation=90

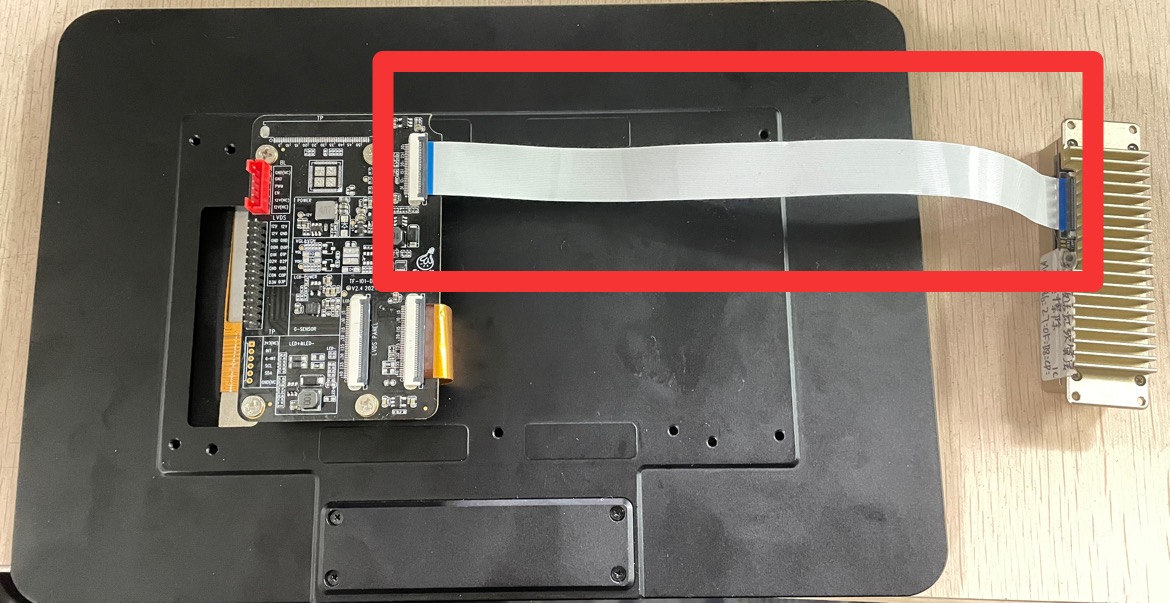

• The hardware connection method between the intelligent binocular module and the MIPI screen is shown in the figure:
