Hardware Information
Hardware Resources
CAM-CRV1126S2U
- CPU:Quad-Core ARM Cortex-A7，RISC-V MCU
- NPU:2.0Tops, support INT8/ INT16
- DDR: DDR4 / 1GB
- Flash: eMMC / 8GB
- Display: MIPI-DSI interface，1080P@60fps
- Camera: Dual MIPI-CSI interface to adapt to RGB & IR binocular camera
- ISP:14M ISP 2.0 with 3 frame HDR(Line-based/Frame-based/DCG)
- Hardware Encoding:Support 4K H.264/H.265 coding -3840 x 2160@30 fps+720p@30 fps encoding
- Hardware Decoding:Support 4K H.264/H.265 decoding -3840 x 2160@30 encoding + 3840 x 2160@30 fps decoding
- RTC：Peripheral RTC
- Peripheral Interface：Debug serial port, Typec otg interface, multi-function expansion interface
CAM-CRV1109S2U
- CPU: Dual-core ARM Cortex-A7，RISC-V MCU
- NPU: 1.2Tops, support INT8/ INT16
- DDR: DDR3 / 1GB
- Flash: eMMC / 8GB
- Display: MIPI-DSI interface，1080P@60fps
- Camera: Dual MIPI-CSI interface to adapt to RGB & IR binocular camera
- ISP: 5 million ISP 2.0 with 3 frame HDR (Line-based/Frame-based/DCG)
- Hardware Encoding：Support H.264/H.265 encoding -2688 x 1520@30 fps+1280 x 720@30 fps -3072 x 1728@30 fps+1280 x 720@30 fps -2688 x 1944@30 fps+1280 x 720@30fps
- Hardware Decoding：Support 5M H.264/H.265 decoding
- RTC：Peripheral RTC
- Peripheral Interface：Debug serial port, Typec otg interface, multi-function expansion interface
Physical Dimension
CAM-CRV1126S2U/CAM-CRV1109S2U is equipped with an index finger-sized shell structure, which has efficient heat dissipation performance and is convenient for installation in any scene.

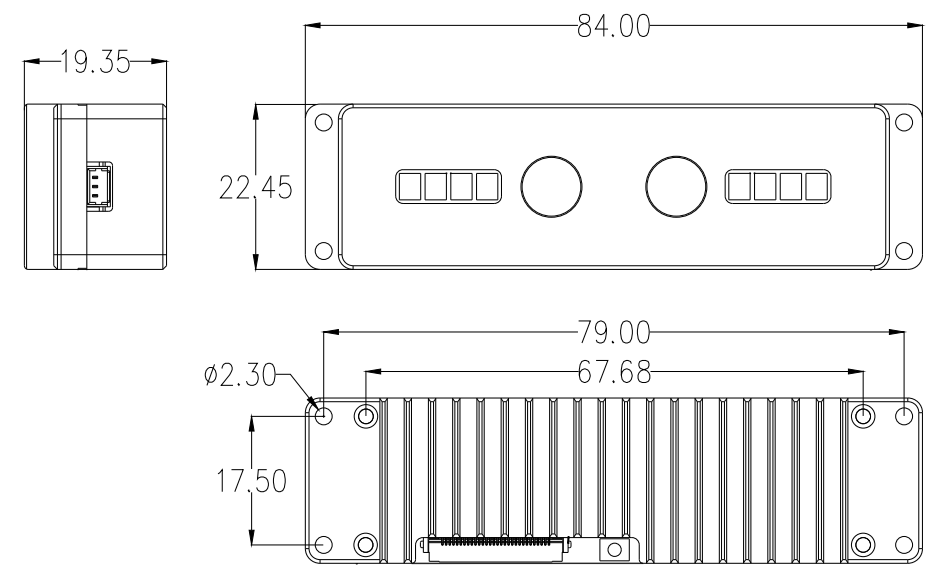

- Appearance size diagram
Peripheral Interface

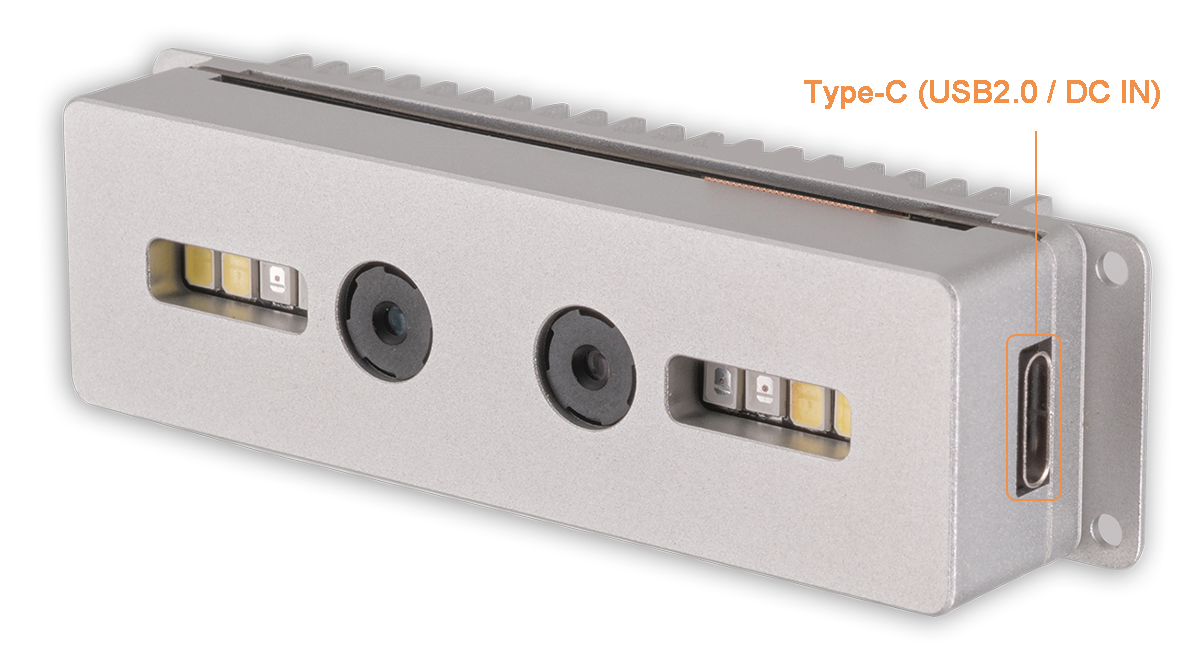

In addition to the basic Typec otg interface and debugging serial port, CAM-CRV1109S2U also retains a wealth of expansion interfaces to meet all control needs.

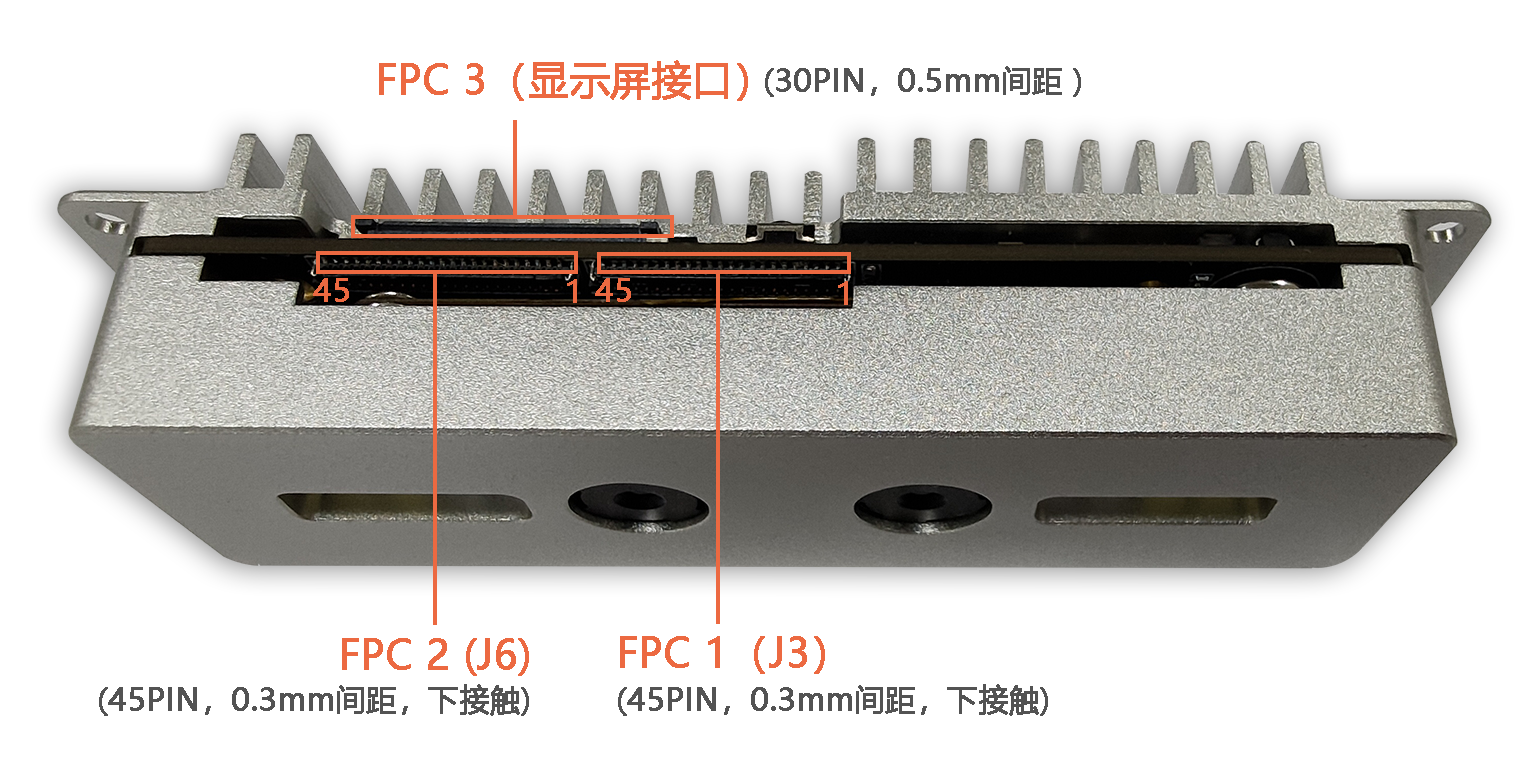

- Peripheral interface diagram

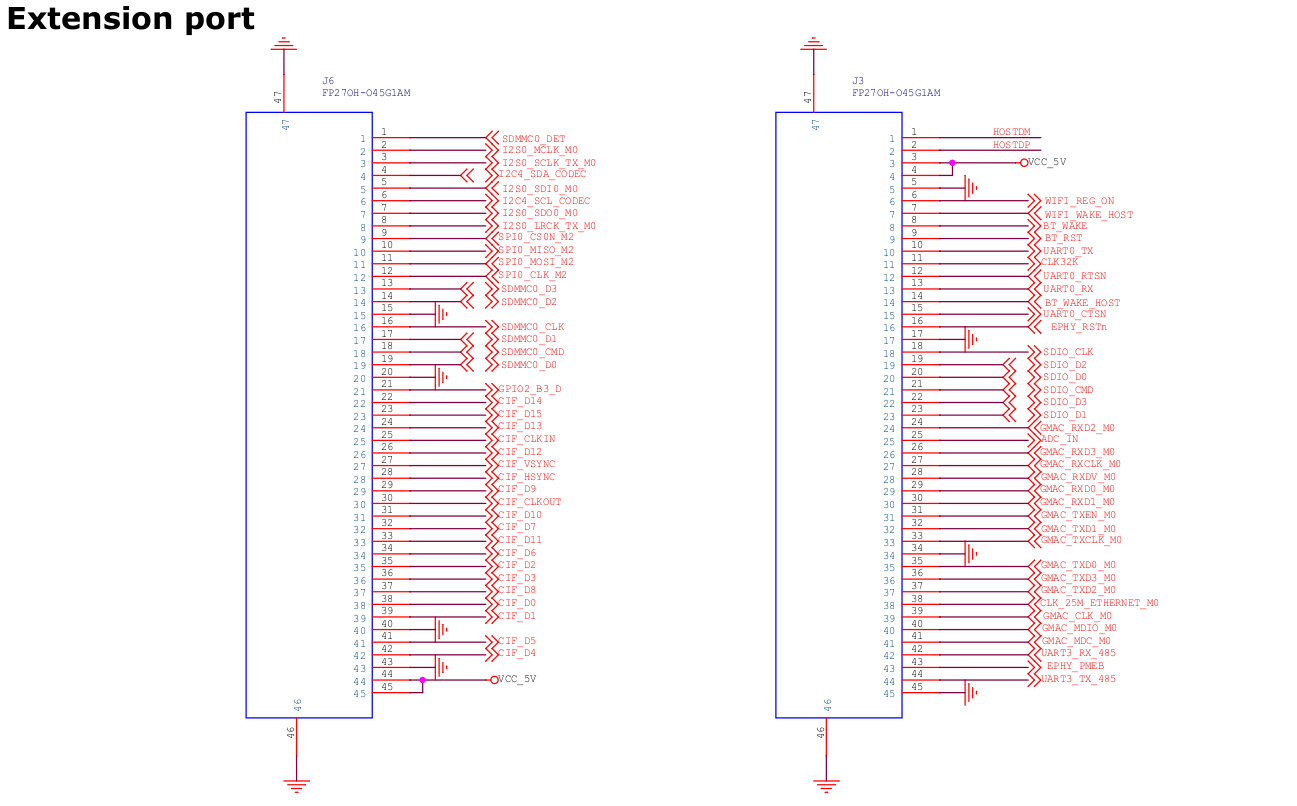

- Extended interface schematic diagram (save as a picture to view locally)
