Hardware Information

Hardware Resources

CPU:Quad-Core ARM Cortex-A7，RISC-V MCU
NPU:2.0Tops, support INT8/ INT16
DDR:DDR4 1GB/2GB
Flash:eMMC 8GB/16GB, SD Card
Display:MIPI-DSI interface, 1080P@60fps
Camera:Double MIPI-CSI interface
ISP:14M ISP 2.0 with 3 frame HDR(Line-based/Frame-based/DCG)
Hardware Encoding:Support 4K H.264/H.265 coding -3840 x 2160@30 fps+720p@30 fps encoding
Hardware Decoding:Support 4K H.264/H.265 decoding -3840 x 2160@30 encoding + 3840 x 2160@30 fps decoding
RTC:External RTC

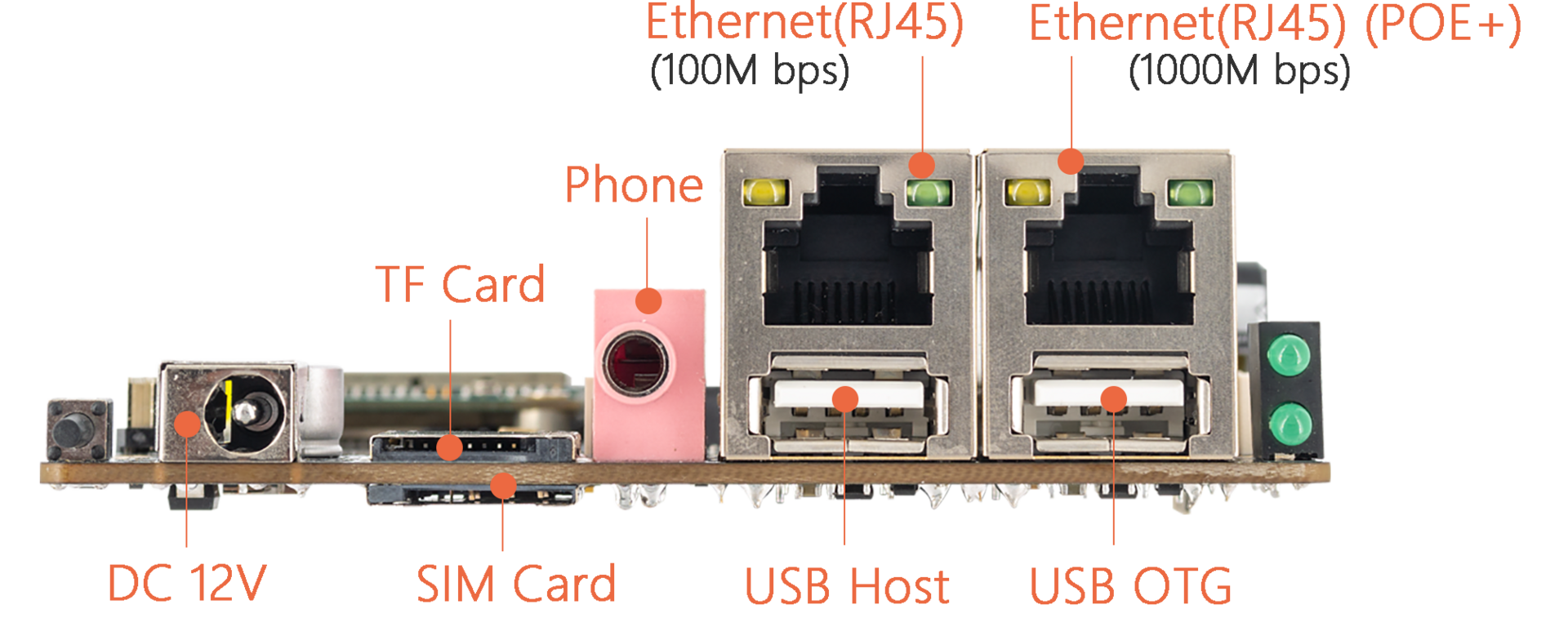

Network:Gigabit Ethernet port, 100MB USB to Ethernet port, WiFi, 4G module interface
Sound Card:RK809 integrated audio decoder

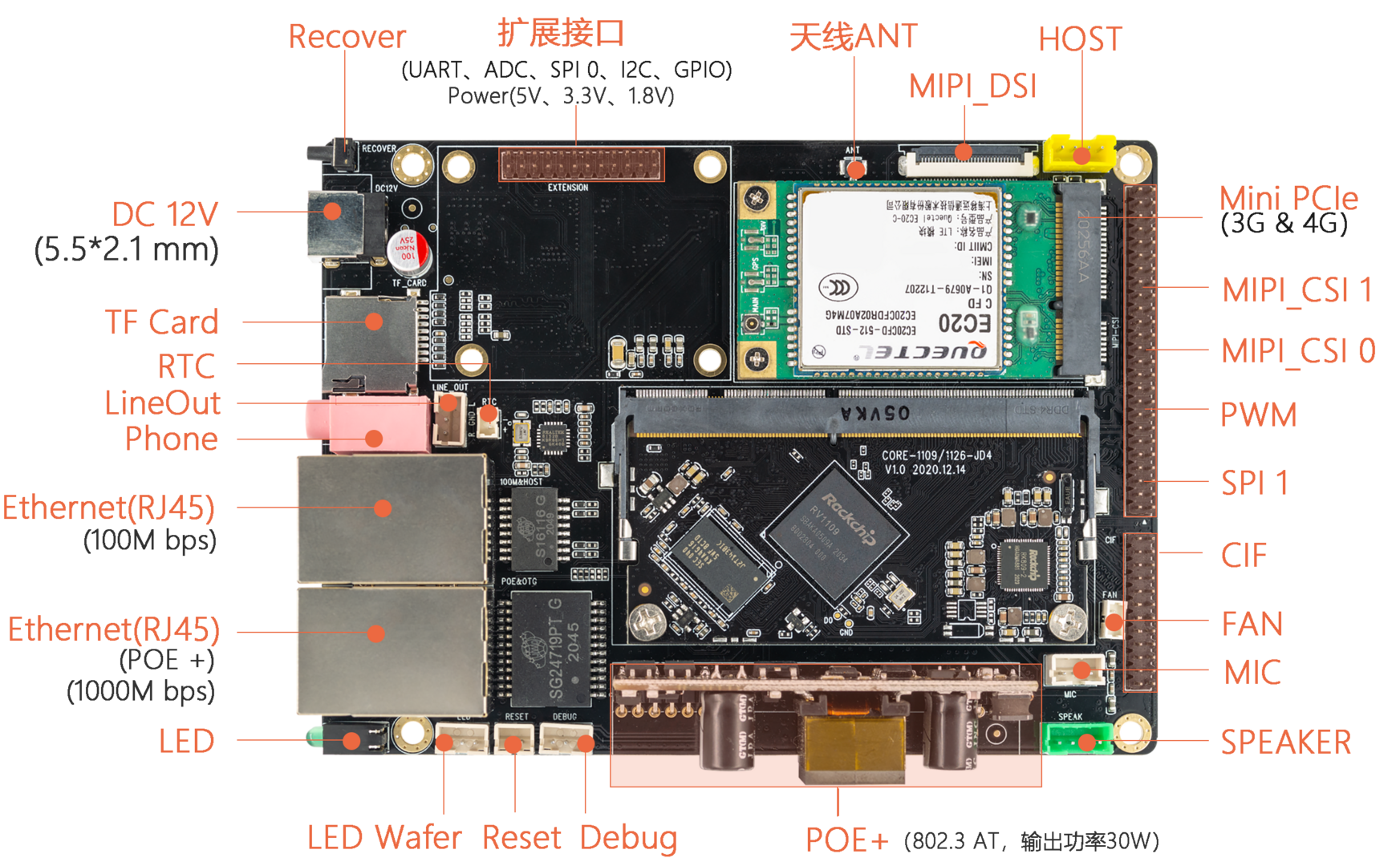

Peripheral Interface:Debug serial port, USB interface, headphone interface, analog microphone interface, Speaker interface

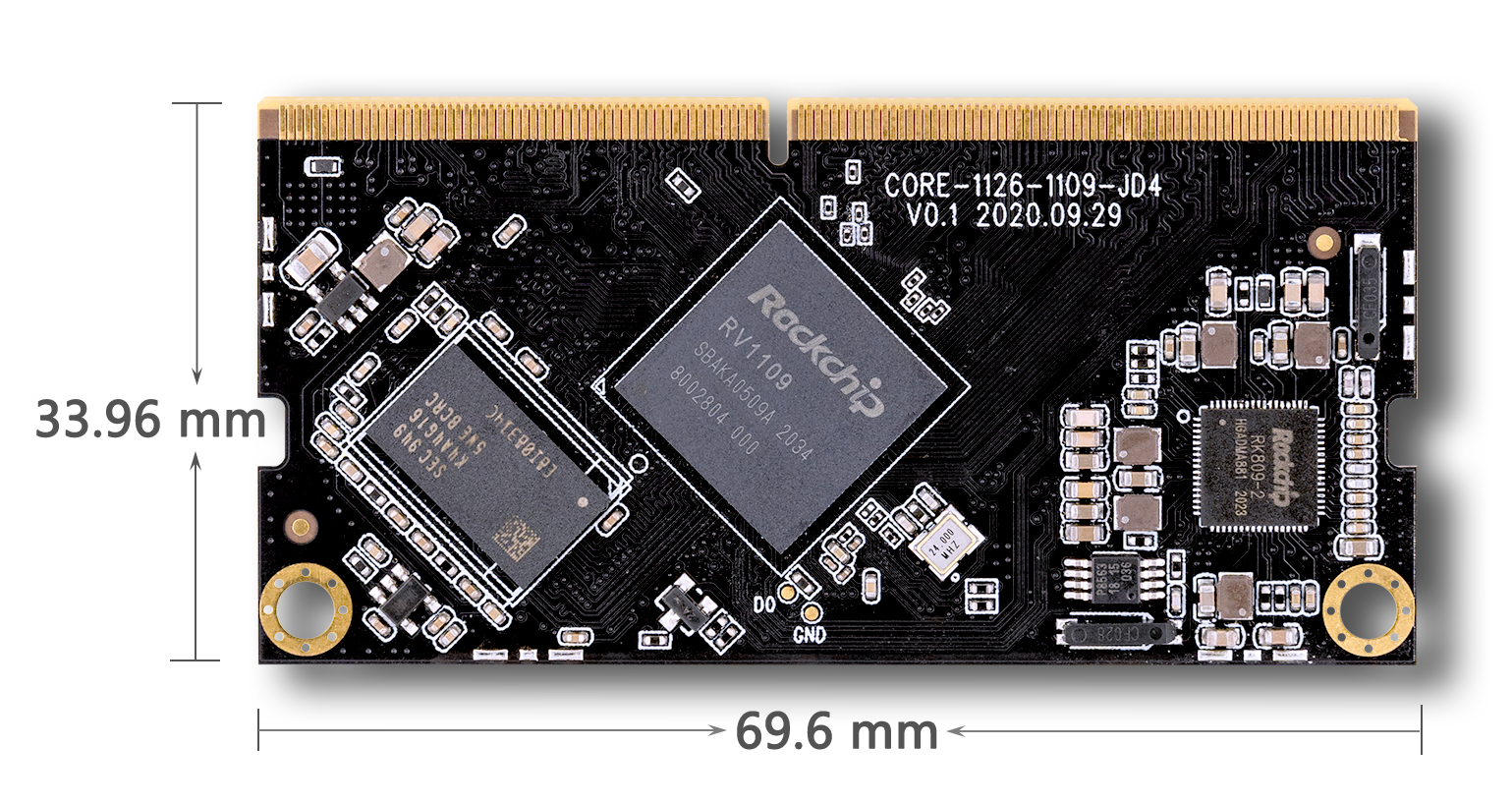

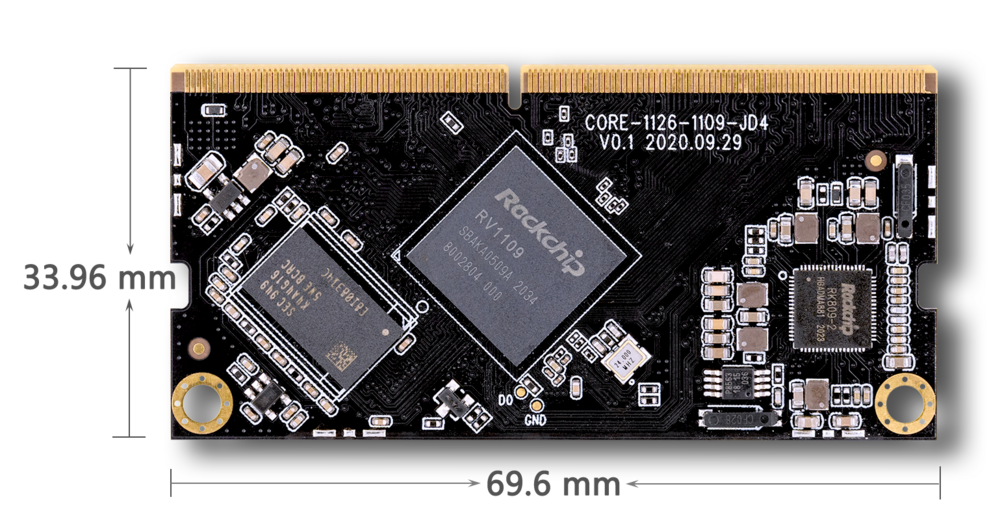

CORE-1126-JD4/CORE-1109-JD4 Goldfinger retains most of the Soc interface, and users can match the official MB-1126-JD4 baseplate for use.
